US15-B10-B1

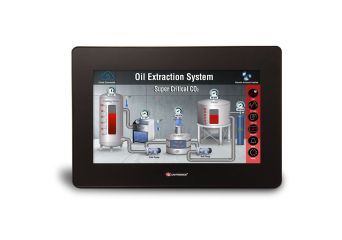

UniStream B15 - PLC with integrated HMI in a 15.6" PRO version without I/O
Manufacturer: UNITRONICS
Manufacturer: UNITRONICS
- Built-in industrial PLC
- Colour HMI display with a diagonal of 15.6"
- Built-in I/O (expandable)
- Built-in industrial communication protocols
- Industrial controller operating from as low as 12VDC supply.
Price from €1,736.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUS15-B10-B1Unistream PLC+HMI B10 15.6" B1 No built-in I/OsIn stockWarranty: €1,736.00€2,135.28Login to check your price US15-B10-B1Unistream PLC+HMI B10 15.6" B1 No built-in I/OsAvailability:In stockNet price:€1,736.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUniStream CX Com 1xCANbusIn stockWarranty: €65.00€79.95Login to check your price UniStream CX Com 1xCANbusAvailability:In stockNet price:€65.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUniStream CX Com 1xRS232In stockWarranty: €39.00€47.97Login to check your price UniStream CX Com 1xRS232Availability:In stockNet price:€39.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUniStream CX Com 1xRS485In stockWarranty: €39.00€47.97Login to check your price UniStream CX Com 1xRS485Availability:In stockNet price:€39.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUAG-BACK-IOADPUniStream US15 IO Exp.KitIn stockWarranty: €60.00€73.80Login to check your price UAG-BACK-IOADPUniStream US15 IO Exp.KitAvailability:In stockNet price:€60.00
Description
Technical Specification
|
US15-B10-B1 |
|
| Type of device | Controller PLC with integrated 15.6" HMI panel of the UniStream series |
|
Built-in inputs and outputs |
|
| Digital inputs (isolated) | - |
| Speed/encoder inputs | - |
| Temperature inputs, RTD/TC | - |
| Analogue inputs | - |
| Transistor outputs | - |
| Fast outputs | - |
| Relay outputs | - |
| Analogue outputs | - |
| Maximum number of I/O | up to 2048 points |
|
Additional input and output extensions |
|
| attachable I/O modules | On US15 controller only: Attach additional IO modules to the rear of the controller using the UAG-BACK-IOADP. |
| Local I/O modules |
. To add local I/O, use the UAG-CX or UAG-BACK-IOADP I/O expansion adapters (see Attachable I/O modules). These adapters Up to 80 I/O modules can be connected to a single PLC using these adapters. |
| Remote I/O |
Yes, URB-TCP up to 63 modules or URB-TCP2 up to 6 modules Unitronics up to 8 IO-Link masters. |
|
HMI display |
|
| Is it built-in? | Yes, 15.6 inch HMI screen |
| Touchscreen | Resistive, analogue |
| Display area width x height (mm) |
344.23 x 193.53 |
| Mounting hole width x height (mm) |
395 x 249 |
| Resolution | 1366 x 768 (HD) |
| Colours | 65536 (16bit) |
| Keyboard | Virtual |
|
Power supply |
|
| Power supply voltage | 12VDC or 24VDC |
| Power supply voltage range | 10.2VDC to 28.8VDC |
| Max. Current consumption |
2.2A@12VDC 1.1A@24VDC |
|
Communication ports |
|
| Built-in | 2 Ethernet ports; 1 USB host port; 1 USB-C for programming |
| Additional | CANbus; RS485; RS232 Up to 3 modules, up to 2 serial ports |
| Ethernet port | 10/100 Base-T (RJ45); Isolation voltage: 500 VAC for 1 minute CAT5e shielded cable, up to 100m |
| USB host | USB 2.0 (480Mbps), Type A, Cable length < 3m |
| CAN | - |
|
Supported protocols |
|
|
Built-in |
Ethernet/IP Scanner/Adapter, Modbus TCP/IP Client/Server, own frame over TCP/IP or UDP, VNC Client/Server, SNMP v3, MQTT Client, OPC UA Server, BacnetIP Server, REST API Client, OCPP, FTP Client/Server, Unicloud support, email, SMS, SQL (B10 version), Webserver (B10 version) |
|
Through an additional port |
EtherCAT master, Modbus RTU master/slave, proprietary frame over RS232, proprietary frame over RS485, CANOpen master, proprietary frame over CANbus. |
|
Memory |
|
| Built-in memory |
RAM: 1GB ROM: |
| Ladder memory | 1MB |
| External memory | MicroSD or microSDHC card Storage up to 32GB Speed up to 200Mbps |
| Battery | 3V CR2032; 4 years at 25°C responsible for storing system data, variables and RTC |
|
Environment |
|
| Degree of protection |
Panel mount (front): IP66, NEMA 4X Rear: IP20, NEMA1 |
| Operating temperature | 0°C to 50°C |
| Standards | UL, CE, UKCE, EAC |
