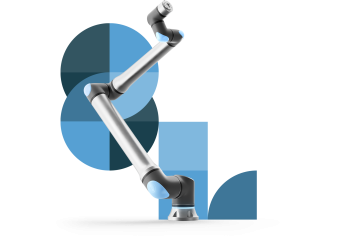

UR8 Long collaborative robot

The UR8 Long is a revolutionary robot, created in response to changing market needs. It was designed specifically for welding applications to make them even more efficient and ensure even more repeatable welds. The result is a tool that is even faster and more efficient, allowing a multitude of demanding tasks to be completed in a short time.

It enables the automation of repetitive and dangerous tasks with a load capacity of up to 10 kg. The robot arm has a reach of up to 1,750 mm and a repeatability of 0.08 mm. Thanks to its compact base flange, long reach, MotionPlus support and a speed of up to 6 m/s, unprecedented among Universal Robots robots, it allows you to implement the most demanding tasks. It is ideal for automating tedious tasks such as:

The UR8 Long cobot is easy to programme, quick to install and has a built-in safety system, making it a "friendly co-worker". It also offers a competitive advantage with the fastest return on investment in the industry.

The UR8 Long collaborative robot is equipped with, among other things, 16 digital I/Os, safety I/Os, analogue I/Os, encoders and a socket for communication using Modbus TCP, Profinet and Ethernet/IP protocols.

Kit contents:

• UR8 Long collaborative robot arm
• Control Box
• 3-position Teach Pendant with PolyScope software
• mounting bracket for control box
• mounting bracket for teach pendant
• control box key
• power cable mains
• Robot arm cable
• User manual

Unlike the standard robot, the OEM Control Box version does not have a housing and does not include a Teach Pendant. This version is designed for installation in a workstation.

Contents of the OEM set:

• UR8 Long collaborative robot arm
• Control Box without housing
• power cable mains
• robot arm cable
• user manual

Various software versions are available:

PolyScope X is a newer, 64-bit version of the system, characteristic of new-generation cobots. It is equipped with a greater number of advanced functions and smart skills. In addition, thanks to an improved interface, robot programming is even simpler.

Would you like to know the price of the robot and learn about the possibilities of robotising processes? Fill out the form and we will contact you.
