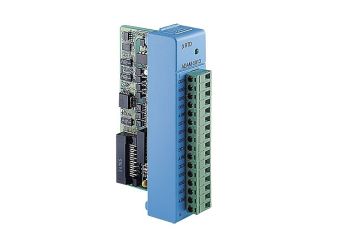

ADAM-5013
3-ch RTD Input Module
- Accuracy: ±0.1% or better
- Effective resolution: 16-bit
- Input connections: 2, 3 or 4 wire
- Sampling rate: 10 samples/sec. (total)
- Isolation voltage: 3000 VDC
- Input type: PT100 or Ni RTD
- Channels: 3
Price from €271.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ADAM-5013
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddADAM-5013-A2E3-Ch RTD Input ModuleOut of stock Warranty: €271.00€333.33Login to check your price ADAM-5013-A2E3-Ch RTD Input ModuleAvailability: Out of stockNet price:€271.00
Description
The ADAM-5013 is a 16-bit, 3-channel RTD input module that features programmable input ranges on all channels. This module is an extremely cost-effective solution for industrial measurement and monitoring applications. Its optical isolated inputs provide 3,000 VDC of isolation between the analog input and the module, protecting the module and peripherals from damage due to high input line voltage.
- Accuracy: ±0.1% or better
- Effective resolution: 16-bit
- Input connections: 2, 3 or 4 wire
- Sampling rate: 10 samples/sec. (total)
- Isolation voltage: 3000 VDC
- Input type: PT100 or Ni RTD
- Channels: 3
