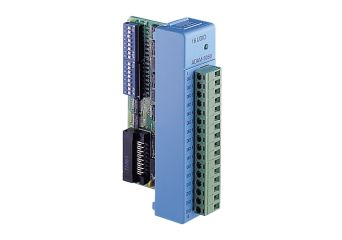

ADAM-5050
16-ch Universal Digital I/O Module
- Digital input: Support Dry/Wet Contact
- Digital output: Open Collector to 30 V, 450 mW max. load
- I/O Type: bit-wise selectable by DIP switch
- Power consumption: 0.35 W (typical); 1.2 W (max)
- Channels: 16
Price from €113.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ADAM-5050
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddADAM-5050-A2E16-Ch Universal DI/O ModuleOut of stock Warranty: €113.00€138.99Login to check your price ADAM-5050-A2E16-Ch Universal DI/O ModuleAvailability: Out of stockNet price:€113.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add4-slot Distributed DA&C System Based on RS-485Out of stock Warranty: €392.00€482.16Login to check your price 4-slot Distributed DA&C System Based on RS-485Availability: Out of stockNet price:€392.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8-slot Distributed DA&C System Based on EthernetIn stockWarranty: €507.00€623.61Login to check your price 8-slot Distributed DA&C System Based on EthernetAvailability:In stockNet price:€507.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8-slot Distributed DA&C System Based on RS-485Out of stock Warranty: €534.00€656.82Login to check your price 8-slot Distributed DA&C System Based on RS-485Availability: Out of stockNet price:€534.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add4-Slot Ethernet-based Distributed DA&C SystemIn stockWarranty: €464.00€570.72Login to check your price 4-Slot Ethernet-based Distributed DA&C SystemAvailability:In stockNet price:€464.00
Description
The ADAM-5050 features sixteen digital input/output channels. Each channel can be independently configured to be an input or an output channel by the setting of its DIP switch. The digital outputs are open-collector transistor switches that can be controlled from the ADAM-5000. The switches can also be used to control solid-state relays, which in turn can control heaters, pumps and power equipment. The ADAM-5000 can use the module’s digital inputs to determine the state of limit or safety switches, or to receive remote digital signals.
- Digital input: Support Dry/Wet Contact
- Digital output: Open Collector to 30 V, 450 mW max. load
- I/O Type: bit-wise selectable by DIP switch
- Power consumption: 0.35 W (typical); 1.2 W (max)
- Channels: 16
