ADAM-5081
4-ch High Speed Counter/Frequency Module
- Minimum Pulse Width: 1μ sec. (Frequency/Counter Mode)
- Function Mode: Counter (Up/Down, Bi-direction, Up, A/B Phase) Frequency
- Input Frequency: Frequency Mode: 5Hz ~1MHz Counter Mode: 1MHz max.
- Isolated Voltage: 2500 Vdc
- Programmable Digital Noise Filter: 1~65000μ sec.
- 4 channels for Counter, 8 channels for Frequency
- Counter Aux. Function: Initial preset, hi-low alarm setting, alarm digital output mapping, overflag
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only

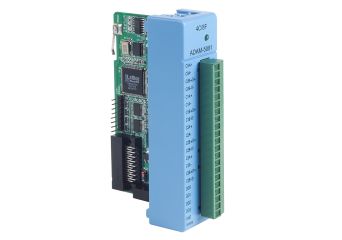

ADAM-5081
Description
ADAM-5081 is a 4-Channel High Speed Counter/Frequency Module, users can select either counter or frequency mode for data input. This high speed module can support a high input frequency from 5Hz to 1MHz. And it provide a noise filter function 1~65000μsec. ADAM-5081 offers users flexible and versatile applications such as counter, frequency, alarm setting, Up / Down, Up, A/B phase or Bi-direction Functions.
- Minimum Pulse Width: 1μ sec. (Frequency/Counter Mode)
- Function Mode: Counter (Up/Down, Bi-direction, Up, A/B Phase) Frequency
- Input Frequency: Frequency Mode: 5Hz ~1MHz Counter Mode: 1MHz max.
- Isolated Voltage: 2500 Vdc
- Programmable Digital Noise Filter: 1~65000μ sec.
- 4 channels for Counter, 8 channels for Frequency
- Counter Aux. Function: Initial preset, hi-low alarm setting, alarm digital output mapping, overflag
Download
