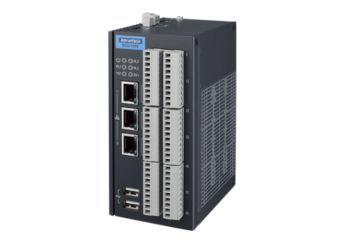

ECU-1370

high-performance industrial IoT gateway with 24 DI, 6 RO, 3x GbE and Ubuntu 22.04

Manufacturer: Advantech

NXP i.MX8M Quad Core Cortex-A53 1.3 GHz processor for high performance IoT and edge computing applications.
Ubuntu 22.04 operating system, making it easy to developóy own applications and integrate with the cloud.
3 10/100/1000 Ethernet ports, enabling flexible network connectivity for industrial applications.
24 isolated digital inputs, suitable for collecting signalsós from field devices.
6 relay outputs, including 4 x Form A and 2 x Form C, for control of actuators.
Isolated RS-485 / RS-232/485 interface, allowing secure communication with serial devices.
1 CAN interface, useful for power systems, automation and integration of specialist equipment.
1-Wire support, enabling the connection of compatible sensorsós and peripherals.
Wide operating temperature range of -40 to 80°C, suitable for harsh industrialóconditions.
Compact DIN rail design, 10–30 VDC power supply and industrial UL, CB, CE, FCC, UKCA certifications, making it easy to implement in real-world projects.

Price from €772.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Description
Download
Recommended Products

ECU-1370

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
ECU-1370-531A IIoT Gateway 3xGbE, 1xCOM, 1xCAN, 24xDI, 6xREL, 1-wire, 2xUSB z Linux Ubuntu	Out of stock	Warranty:		€772.00 €949.56 Login to check your price	Login to check your price	pcs.

ECU-1370-531A

IIoT Gateway 3xGbE, 1xCOM, 1xCAN, 24xDI, 6xREL, 1-wire, 2xUSB z Linux Ubuntu

Availability: Out of stock

Net price:

€772.00

Description

Advantech ECU-1370 is a high-performance industrial IoT gateway designed for applications in power generation, energy storage systems, electrical installations and data-intensive industrial environments. The device is based on the NXP i.MX8M Quad Core Cortex-A53 1.3 GHz platform and runs Ubuntu 22.04, providing great flexibility for custom application development and integration with cloud systems.

The gateway is equipped with 3 Gigabit Ethernet ports, an isolated RS-232/485 or RS-485 port, 1 CAN interface, 24 digital inputs, 6 relay outputs, as well as 1-Wire, 2 USB ports 2.0, microSD and a USB Type-C console port. This configuration makes it easy to connect multiple field devices, metersós, controllersós and sensorsós in a single system.

ECU-1370 is also distinguished by its wide operating temperature range from -40 to 80°C, power supply 10–30 VDC, mounting on DIN rail and an industrial enclosure with protection class IP30. This makes it suitable for demanding environmental conditions, róalso where reliability, robustness and long-term continuous operation are important.
