AIIS-3411

Compact Vision System supports 10th Gen Intel® Core™ i CPU, 4-CH Lighting control and Isolated DIO, 4-CH Camera Interface for GigE PoE or USB 3.0

Intel 10th generation Core i CPU (LGA1200)
AIIS-3411P: 4-CH GbE PoE (Power over Ethernet)
- Powered device auto detection and classification
- IEEE 802.3af compliant, supports IEEE 1588
- Compatible with GigE cameras
AIIS-3411U: 4-CH USB 3.0 with dedicated controller
- Maximize the USB3.0 bandwidth for multi-cameras
- Compatible with USB 3.0 cameras
Optional AIIS-1882 module for lighting control and isolated DIO
- Supports 4-ch lighting control output powered by internal 12VDC/1A per channel with trigger input or optional external power input 12~24VDC, 2A max.
- Programmable delay time, PWM high/low time and lighting output duration
- 12-ch isolated digital input and 16-ch isolated digital output and 2,500 VDC isolation protection for all I/O signals

Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Description
Download
Recommended Products

AIIS-3411

Description

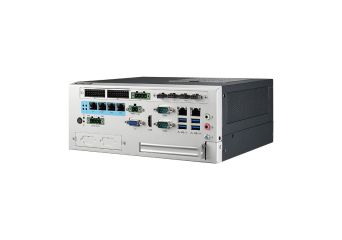

AIIS-3411 is a new Machine Vision IPC with Intel 10th generation Core i CPU (LGA1200) supporting not only PoE/ USB camera interface but also the function of PWM lighting control and Isolated DIO (via optional AIIS-1882).
