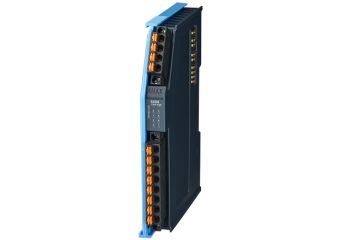

AMAX-5056

8-ch Digital output Module with EtherCat

Manufacturer: Advantech
Manufacturer: Advantech
  • Channels: 8 (Sink Type)
  • Voltage Rating: 10~30VDC
  • Rated Current Output: 0.3A per channel at signal "1"
  • Leakage Current: 25 μA per channel at signal "0"
  • Output Delay: From logic level 0 to 1: 10μs; From logic level 1 to 0: 100μs
Price from €60.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    AMAX-5056-A
    8-ch Digital Output (Sink) EtherCAT Module
    Out of stock Warranty:
    €60.00
    €73.80
    Login to check your price
    AMAX-5056-A
    8-ch Digital Output (Sink) EtherCAT Module
    Availability: Out of stock
    Net price:
    €60.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    AMAX-5056SO-A
    8-ch Digital Output (Source) EtherCAT Module
    Out of stock Warranty:
    €66.00
    €81.18
    Login to check your price
    AMAX-5056SO-A
    8-ch Digital Output (Source) EtherCAT Module
    Availability: Out of stock
    Net price:
    €66.00

Description

  • Channels: 8 (Sink Type)
  • Voltage Rating: 10~30VDC
  • Rated Current Output: 0.3A per channel at signal "1"
  • Leakage Current: 25 μA per channel at signal "0"
  • Output Delay: From logic level 0 to 1: 10μs; From logic level 1 to 0: 100μs
