AMAX-4834
32-ch Isolated Digital Output EtherCAT Remote I/O Module
- Suitable for EtherCAT networks
- 32-ch digital output with 2,500 VDC isolation
- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 slave IDs
Price from €233.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
AMAX-4834
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMAX-4834-B32-ch DO EtherCAT Remote I/O ModuleOut of stock Warranty: €233.00€286.59Login to check your price AMAX-4834-B32-ch DO EtherCAT Remote I/O ModuleAvailability: Out of stockNet price:€233.00
Description

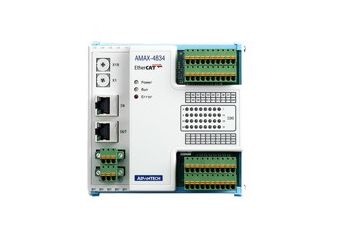

The AMAX-4834 is an industria EtherCAT slave module equipped with the EtherCAT protocol. Its compact size and DIN-rail mount kit can install easily in a cabinet. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital output channels are protected by 2,500 V DC isolation.
- Suitable for EtherCAT networks
- 32-ch digital output with 2,500 VDC isolation
- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 slave IDs
Download
