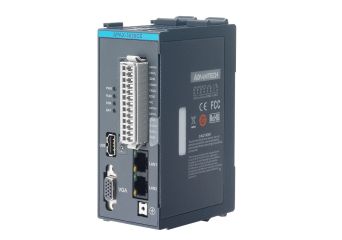

APAX-5620

APAX-5620KW is a RISC-based Controller with an Intel XScale PXA270 CP. It also features two CAN bus interfaces, which support CANOpen stack (DS301 & 302), and two RS-485 ports allowing it to connect to remote I/O devices as well as being able to support up to 32 APAX I/O modules. The APAX-5620KW supports Microsoft Visual Studio, and .Net programming language, thereby allowing PC-based users to easily develop their own applications. It is also compatible with IEC-61131-3 based Multiprog KW languages, which allow users to download change functions and time deterministic support. With these great features, the APAX-5620 is an excellent cost-effective solution for a wide range of applications, such as steel production monitoring, spinning & weaving machinery, factory automation, and tunnels & freeways.

• Onboard Intel XScale® PXA270 520 MHz processor
• 64 MB SDRAM on board, 32 MB Flash
• Expands I/O by connecting with APAX-5000 I/O modules
• 2 x 10/100 Mbps RJ-45 LAN ports and 2 x Isolated RS-485 ports
• 2 x Isolated CAN bus interfaces to support CANOpen stack
• 1 x VGA port for display and 1 x USB port
• 1 x CompactFlash slot for data storage
• Windows CE, C/C++, .NET ready platform
