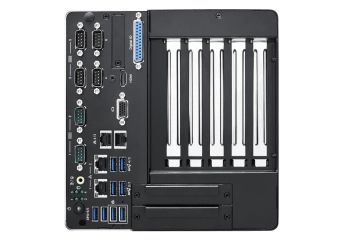

ARK-3532D-00A1 Intel CML W480E PCIex4+PCIex16+2*PCI, 12-36V | Out of stock | Warranty: | €1,105.00 €1,359.15 | Login to check your price |
Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor Triple independent display: VGA + HDMI + Optional Display DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB 12-36VDC wide range power input Up to 4sets 2.5" hard drive bays, support Intel® SW RAID Support 4GbE, 8USB, 6COM, 16bit DIO.
Part Number | ARK-3532D-00A1 |
Processor | |
CPU | Intel Xeon W -1290TE/Intel Core i9 10900E/Intel Core i7 10700E/Intel Core i5 10500E/Intel Core i3 10 |
L3 Cache | 20MB/20MB/16MB/12MB/6MB/2MB |
Core Number | 10/10/8/6/4/2 |
Chipset | W480E |
Memory | |
Technology | DDR4 2933MHzSO -SIMM |
Max .Capacity | 64GB |
Socket | 2x 260pin SO -DIMM |
Graphics | |
Chipset | Intel UHD Graphics 630 |
Graphic Engine | Direct x 12,OpenGL 4.4,HW Encode :H.265 /HEVC ,H.264 /MPEG -4AVC ,MPEG -2,JPEG /MJPEG and VP8 ,HW DeMPEG -2,VC -1/WMV9 ,JPEG /MJPEG ,VP8 and VP9 |
Display | |
VGA | 1920x 1200at 60Hz |
HDMI | 1 |
Triple Display | Yes |
Ethernet | |
LAN | 10/100/1000Mbps |
Other | |
Watchdog Timer | 255levels timer interval ,setup by software |
Expansion | |
Mini PCle | 1x Full -size Mini PCle (1x support mSATA ,1x support SIM holder )#1 |
M.2 | 1x M.2 2230E key for WIFI module |
PCI Express x 4 | 1 |
PCI Express x 16 | PCI -E x16 graphics card slot |
PCI | 2 |
Storage | |
HDD | HDD 2x 2.5"SATAIII 15mmheight HDD bay support Intel SW RAID (Up to 4x 2.5"SATAIII HDD bays by option |
mSATA | mSATA 1x mSATA socket (Share with Mini PCle ) |
Software Development Kit | |
Operating System | Windows 10(64bit) |
Linux | by Project support |
Power Requirement | |
Power Type | AT /ATX |
Voltage | 9-36VDC in |
Power Consumption | |
Typical | 30W |
Max | 64.8W |
Regulation | |
EMC | CE /FCC Class B ,CCC ,BSMI |
Safety | CB ,UL ,CCC ,BSMI |
Environment | |
Operational Temperature | With extended temp peripherals :-20~60°C with 0.7m/s air flow ,with HDD :0~40°C with 0.7m/s air flow |
Temperature (Storage ) | -40~85°C (-40-185°F ) |
Relative Humidity | 95%@40°C (non -condensing ) |
Vibration during Operation | With mSATA /SSD :3Grms ,IEC 60068-2-64,random ,5~500Hz ,1hr /axis |
Shock Protection | With CompactFlash disk :30Grms,IEC 60068-2-27,half sine ,11ms duration |
Humidity | Operating :40°C @95%relative humidity ,non -condensing |
