BB-485OPDR-HS
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
BB-485OPDR-HS ULI-234TCH RS-422/485 Iso. Repeater, high speed | Out of stock | Warranty: | €206.00 €253.38 | Login to check your price |

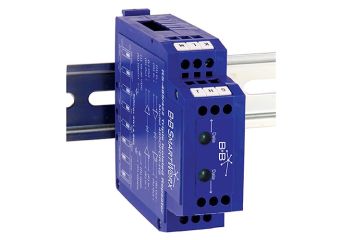

Model BB-485OPDR-HS is a high speed, optically isolated RS-422/485 repeater that supports data rates up to 1.5 Mbps, making it suitable for use in fieldbus systems such as Profibus. Isolation - Model BB-485OPDR-HS provides 2 kV digital isolation with 8 kV air ESD protection and 600 W transient voltage suppression on the data lines. Range Extension - Model BB-485OPDR-HS can be used to extend the range of a network up to 1.2 km (4000 ft), depending on data rates, and to add additional nodes. 2-wire RS-485, 4-wire RS-485 and RS-422 are supported. Data signals and the power inputs connect to built-in terminal blocks. Power - The repeater operates on externally sourced 10 to 30 VDC power (power supply is required, not included, sold separately). Enclosure - The enclosure has a DIN rail mount enclosure that is designed to easily fit on standard 35mm DIN rail.
