Promocja cenowa na model HDR-15-5
BB-485OPDRI
Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|
BB-485OPDRI ULI-234TCI 3-Way Iso. RRS-485/422 DIN Rail RPTR | Out of stock | Warranty: | €224.00 €275.52 | Login to check your price |

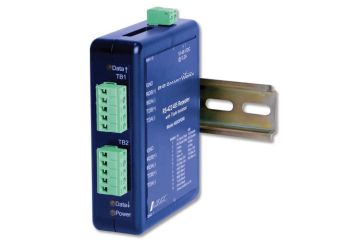

Model BB-485OPDRI isolated RS-422/485 repeater is designed for rugged industrial environments. It is UL listed and certified for use in Class 1/Division 2 locations. Powerful optical isolation on both data ports protects your equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third degree of protection. Packaged in a rugged ABS plastic case, this repeater operates in wide temperature extremes. With a 35mm DIN rail mounting bracket, it easily integrates into control panels or other industrial equipment. Installation and configuration is easy with DIP switches to set up baud rate and serial communications mode. Removable terminal blocks make wiring a snap. Power is connected through separate terminal block that accepts 10 to 48 VDC from any external source (power supply required, not included, sold separately). Model BB-485OPDRi On DH-485 Network In Place of Allen-Bradley(R) 1747-AIC Link Coupler: Model BB-485OPDRi RS-422/485 industrial optically isolated repeater, often used in Modbus applications, can also be configured for use in the DH-485 environment as a limited replacement for the 1747-AIC.
