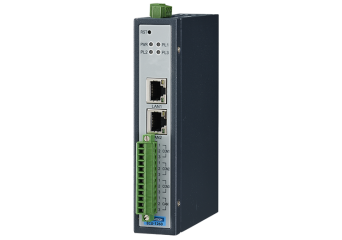

ECU-1260
Industrial Communication Gateway with Cortex Quad Core Cortex A35, 2 LAN, 3 COM & 1 CAN
Manufacturer: Advantech
Manufacturer: Advantech
-
Quad-core Cortex-A35 1 GHz processor delivering high performance with low power consumption
-
2× 10/100 Mbps Ethernet ports for network communication and system integration
-
3 isolated RS-232/485 serial ports (3000 VDC isolation)
-
1 CAN interface (2-pin) for integration with CAN bus systems
-
Support for protocols such as Modbus RTU/TCP, IEC-60870-5-101/103/104, OPC UA, BACnet/IP, and over 200 PLC drivers
-
Yocto Linux 4.4 operating system with the WISE-EdgeLink software package
-
Expansion capability for Wi-Fi / LTE via Mini-PCIe slot
-
16 GB eMMC, 2 GB DDR3L, and a Micro-SD slot for storage expansion
-
Wide operating temperature range: –40 to 70 °C
-
Low power consumption: 2.4 W @ 24 VDC
-
DIN-rail or wall mounting, compact enclosure
Price from €270.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ECU-1260
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddECU-1260-351ARockchip1GHz,1xCAN,2xLAN,3xCOM,w/ EdgeLinkOut of stock Warranty: €270.00€332.10Login to check your price ECU-1260-351ARockchip1GHz,1xCAN,2xLAN,3xCOM,w/ EdgeLinkAvailability: Out of stockNet price:€270.00
Description
Advantech has introduced the ECU-1260, an industrial communication gateway designed for applications related to solar power, electricity, and factory operations that demand comprehensive wireless and Ethernet communication solutions. The ECU-1260 is equipped with a Cortex A35 processor, up to three RS-232/485 isolated serial ports, two Ethernet ports, and can operate within a temperature range of -40 to 70°C. It runs on the Linux operating system and comes with an open Edgelink SDK, allowing system integrators to develop customized applications that precisely meet their requirements.
