ECU-150
NXP i.MX8M Quad Core Cortex A53, High-Performance IoT Gateway with 2 x LAN, 2 x COM, 1 x USB
Manufacturer: Advantech
Manufacturer: Advantech
- NXP i.MX8M Quad Core Cortex A53 1.3G CPU
- DDR4 2GB RAM, 16GB eMMC for system storage
- 2 x RS-232/485 isolated serial ports
- 2 x 10/100/1000 Ethernet ports
- 1 x Mini-PCIe for WIFI/Cellular/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol
- Support Data logger on SD card
Price from €435.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddECU-150-12AA53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLinkIn stockWarranty: €435.00€535.05Login to check your price ECU-150-12AA53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLinkAvailability:In stockNet price:€435.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddECU-150-12A-LTEA53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLinkOut of stock Warranty: €0.00-- ECU-150-12A-LTEA53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLinkAvailability: Out of stockNet price:-- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddECU-150-12A1A53 1.3GHz,2xLAN,2xCOM,1xmPCIEOut of stock Warranty: €485.00€596.55Login to check your price ECU-150-12A1A53 1.3GHz,2xLAN,2xCOM,1xmPCIEAvailability: Out of stockNet price:€485.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAKC-ANTENA-GSMGSM antennaIn stockWarranty: €11.00€13.53Login to check your price AKC-ANTENA-GSMGSM antennaAvailability:In stockNet price:€11.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMOD-EC25-EModem Quectel EC25-E miniPCIeIn delivery Warranty: €64.00€78.72Login to check your price MOD-EC25-EModem Quectel EC25-E miniPCIeAvailability: In deliveryNet price:€64.00
Description

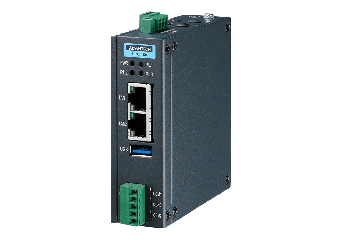

ECU-150 is an i.MX8M based high-performance IoT gateway, which has an open platform design with Quad Core processor, two RS-232/485 isolated serial ports, two 10/100/1000 Ethernet ports, one USB 3.0 port and operating temperature range of -40~70°C. It offers Mini-PCIe and M.2 slot.
Download
