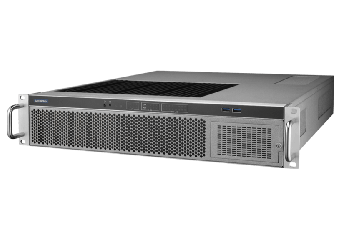

ECU-479
IEC-61850-3 Certified Fanless Server with Intel® 13th Gen. Core™ Processors
Manufacturer: Advantech
Manufacturer: Advantech
- 13th Gen Intel® Processor with 8+8 Cores
- Quad display interfaces for SCADA and more multi-display use cases
- Support for a RAID card, HSR/PRP expansion card, and redundant PSU
- Supports Intel® AMT, iBMC, SNMP for remote management
- Wide operating temperature range, fanless rugged design for harsh environments
- Optional 10-year warranty and long product life cycle for substations
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Description
Technical Specification
| ECU-479 | |
| Processor | 13th Gen Intel® Core™ Processors, up to Core™ i7 |
| RAM | up to 64 GB DDR4 SODIMM |
| DVI-D | - |
| VGA | - |
| Display Port | 4 |
| Audio | - |
| Gigabit Ethernet | 4 |
| 2,5" HDD | 4 x 2.5" hot-swappable SATA SSDs (max. 9.5mm height) |
| mSATA | - |
| M.2 | 1 x M.2 2280 M-Key NVMe PCIe Gen. 3 x4 / SATA (Supports Intel® RST RAID 0,1,5,10) |
| USB 3.0 | 3 |
| Serial ports | 2 x RS-232/422/485 |
| PCIe x16 | 1x Slot Gen4 low profile |
| PCIe x8 | - |
| PCIe x4 | 3x Slot Gen3 low profile |
| miniPCIe | - |
| TPM | - |
| Working temp. | -25°C ~ +70°C |
Download
