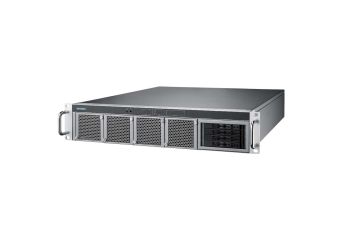

ECU-579
IEC-61850-3 Certified Power Automation Server Based on Intel® Xeon® Processor Scalable Family
- 2U rackmount server with wide operating temperature
- Suppports 2nd Gen. Intel® Xeon® Scalable Processors
- 12 x DIMM sockets supporting up to 768GB DDR4 SDRAM
- Up to 2 x hot-swappable PSUs and 4 x hot-swappable fans for redundancy
- Up to 4 x 2.5" hot-swappable HDD/SSD, 1 x M.2 2280 SATA/PCIe SSD
- Up to 2 x PCIe x16 Gen3 slots, PCIe x8 Gen3 slots, PCIe x4 Gen3 slots
- IPMI 2.0-compliant management with reliability and security enhancements
- Optional TPM 2.0 module
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyTechnical Specification
| ECU-579 | |
| Processor | Compatible with Intel® Xeon® Processor Scalable Family |
| RAM | up to 768GB DDR4 SDRAM |
| DVI-D | 2 |
| VGA | 1 |
| Audio | - |
| Gigabit Ethernet | 4 |
| 2,5" HDD | 4 x 2.5" hot-swappable SATA HDD/SSD (Intel® RST RAID 0,1,5,10) |
| mSATA | - |
| M.2 | 1 x M.2 2280 SATA/PCIe NVMe SSD |
| USB 3.0 | 3 |
| Serial ports | - |
| PCIe x16 | 2x Slot Gen3 low profile |
| PCIe x8 | 1x Slot Gen3 low profile |
| PCIe x4 | 1x Slot Gen3 low profile |
| miniPCIe | 1 |
| TPM | Optional TPM 2.0 |
| Working temp. | -20°C ~ +60°C |
