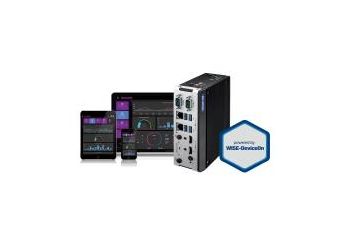

Ei-A110

Edge Intelligence System Powered By WISE-DeviceOn

Manufacturer: Advantech
Manufacturer: Advantech
  • Integrated hardware plus software to build up edge-to-cloud applications
  • Powered by WISE-DeviceOn for IoT device remote and operation management
  • Pre-configured system: Intel® Celeron® N3350 dual core, Windows 10 IoT Enterprise, 4G DDR3L memory and 64G SSD
  • DIN-Rail system with essential I/O ports on front-side bezel
  • 12V ~ 28V wide range power input
  • -30 ~ 70 °C extended operating temperature
Product out of stock

Free shipping from €500

Promocja cenowa na model HDR-15-5

Description

To fulfill customer requirements in edge computing trend, Advantech offers Ei-A110 Edge Intelligence System integrated hardware plus software solution powered by WISE-DeviceOn.It allows users to incorporate sensor data aggregation, edge analytics, and cloud integration for fast and easy real-time edge intelligence, and plus the flexibility to add on more softwaremodules from the WISE-PaaS marketplace that enable IoT connectivity, data manageability and analytics in the edge.

Technical Specification

Part Number EI-A110-S1A1
Processor
CPU  Intel Celeron N3350 Dual Core SOC
Memory
Technology  DDR3L 1866MHz
Max .Capacity  8GB,1x 4GBmemory (-40-85°C )built -in
Graphics
Chipset  Intel HD Graphics 500,CPU integrated
Graphic Engine  Gen9 Low Power ;18Execution Units Media Codec Supported :H.264 ,MPEG2 ,MVC ,VC -1,WMV9 ,H.265 /HEVC
  OpenGL 4.4,DirectX 12,OpenCL *2.0
HDMI  HDMI1 :3840x 2160@30Hz;HDMI2 :3840x 2160@30Hz
Dual Display  HDMI1 +HDMI2
Ethernet
LAN1  10/100/1000Mbps Intel 1210GbE ,support Wake On Lan
LAN2  10/100/1000Mbps Intel 1210GbE ,support Wake on LAN
Audio
Interface  Realtek ALC888S ,High Definition Audio ,Line -out ,Mic -in
I/O
Serial port  2x RS -232/422/485with auto flow control ,COM2 with 5V/12Vpower supply
USB  4x USB 3.0
GPIO  8-bit Programmable DIO (Optional )
Expansion
Mini PCle  1x Full -size mPCle with SIM holder
M.2  1x M.2 2230E key for WIFI module
Power
Input Voltage  1228VDC
Power Adaptor  AC to DC ,24V/2.5A60Wadaptor built -in
Storage
2.5"HDD /SSD  1x 2.5"64GMLC SSD (-40-85°C )built -in
mSATA  1x Full -size mSATA (*share with mPCIe slot )
Others
Watchdog timer  255levels timer interval ,setup by software
Software Support
Microsoft Windows  Windows 10IoT Enterprise built -in
Power Consumption
Typical  6.4W
Max 18.1W
Mechanical
Construction  Aluminum housing
Mounting  DIN -rail /Wall Mount
Dimensions  53.5x 158x 114mm (2.11"x 6.22"x 4.49")
Weight  1.2kg (2.65lb)
Environment
Operating Temperature  With extended temp .peripherals :-30-70°C (-22158°F )with 0.7m /s air flow
Vibration during Operation  With SSD :3Grms ,IEC 60068-2-64,random ,5~500Hz ,1hr /axis
Shock During Operation  With SSD :30G ,IEC 60068-2-27,half sine ,11ms duration
Certification
EMC  CE /FCC Class B ,CCC ,BSMI
Safety Certifications  UL ,CB ,CCC ,BSMI
