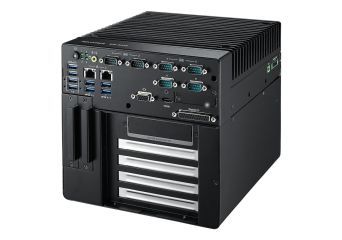

EIS-S232

Edge Cloud Solution with Multi-cloud Integration for Centralized Data and Device Management

High-performance edge cloud server with Intel® Xeon® W-1290TE and 10 cores up to 4.5Ghz
Open and standard structure: Kubernetes (MicroK8S) built-in, multiple DB connections, and on-demand micro-services
Integrated IoT software for private cloud deployment, platform management, and application integration
Sustainable management — condition monitoring, load balancing, and self-healing
Integrated iEdge Server dashboard for front-/back-end management

Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Description
Technical Specification
Download
Recommended Products

EIS-S232

Description

The EIS-S232 is a modern solution designed for flexible deployment of IoT applications. The device is integrated with Kubernetes (MicroK8S), enabling microservices support and providing a complete set of back-end software components. With its open and standard architecture, it supports multiple database connections and on-demand microservices.

The EIS-S232 offers dynamically scalable resources, allowing users to expand them as needed. Its integrated IoT software simplifies private cloud deployment, platform management, and application integration. Advanced monitoring, load balancing, and self-healing mechanisms ensure system stability and reliability. Additionally, the built-in iEdge Server dashboard enables efficient front-end and back-end management.

The EIS-S232 is a comprehensive and high-performance solution for companies looking to develop and scale IoT applications in an easier, more flexible, and scalable way.

Technical Specification

	EIS-S232-U20STB1	EIS-S232-01DSTB1	EIS-S232-01DS281
CPU	Intel Xeon W-1290TE	Intel Core i7-10700E	Intel Core i3-10100E
RAM	Built-in 32GB (-40 ~ 85 °C)	Up to 64GB SODDR4	Up to 64GB SODDR4
VGA	1	1	1
HDMI	1	1	1
Ethernet	2x GbE LAN (RJ-45)	2x GbE LAN (RJ-45)	2x GbE LAN (RJ-45)
Serial Ports	4x RS-232/422/485 2x RS-232	4x RS-232/422/485 2x RS-232	4x RS-232/422/485 2x RS-232
USB	4x USB 3.2 4X USB 3.0	4x USB 3.2 4X USB 3.0	4x USB 3.2 4X USB 3.0
GPIO	16bit GPIO	16bit GPIO	16bit GPIO
MiniPCIe	1x full-size (1 x support mSATA, 1 x support SIM holder)*	1x full-size (1 x support mSATA, 1 x support SIM holder)*	1x full-size (1 x support mSATA, 1 x support SIM holder)*
M.2	1x M.2 2230E key for WIFI module	1x M.2 2230E key for WIFI module	1x M.2 2230E key for WIFI module
PCIe x16	1x graphics card slot	1x graphics card slot	1x graphics card slot
PCI	2	2	2
iDoor Module	1x (Optional)	1x (Optional)	1x (Optional)
HDD/SSD	2x 2.5"SATAIII - 15mm height - support Intel SW RAID - Built-in 1TB (-40 ~ 85 °C)	2x 2.5"SATAIII - 15mm height - support Intel SW RAID	2x 2.5"SATAIII - 15mm height - support Intel SW RAID
mSATA	1x socket (Share with MiniPCIe)	1x socket (Share with MiniPCIe)	1x socket (Share with MiniPCIe)
Operating System	Windows 10 IoT LTSC, Linux Ubuntu	Windows 10 IoT LTSC, Linux Ubuntu	Windows 10 IoT LTSC, Linux Ubuntu
Input Voltage Range	12-36VDC	12-36VDC	12-36VDC
Operational Temperature	Regular: 0 ~ 40° C With extended temp. peripherals :-20~60°C	Regular: 0 ~ 40° C With extended temp. peripherals :-20~60°C	Regular: 0 ~ 40° C With extended temp. peripherals :-20~60°C
Relative Humidity	95%@40°C (non-condensing)	95%@40°C (non-condensing)	95%@40°C (non-condensing)
TPM	TPM 2.0	None	None
