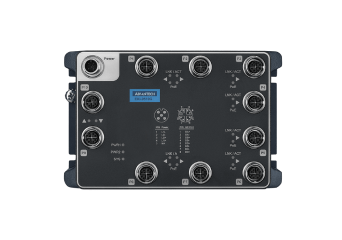

EKI-9510G-P

EKI-9510 series switch is designed for railway application, with rugged and high EMC performance. EKI-9510 series is the suitable networking solution for rolling stock and wayside
applications. It provides M12 connectors for Ethernet/ console/ power-input) connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental
disturbances, it complies with IEC61373 vibration and shock for rolling stock application. The portfolio of EKI-9510 series provides multiple options, depends on user’s demand, it
has Managed type or Unmanaged type, Fast Ethernet or Gigabit Ethernet solutions, with IEEE802.3af/at PoE function (PoE model only), it provides up to total 90Watts power budget
for P.D. devices (such as camera, IP-phone and wireless access point).
EKI-9510 series features a “compact” designed, with the IP67 rugged housing and the ample pitch connectors that can easy connect/ disconnect cables without interference to prevent
the human error within the harsh industry and narrow environment. With the “short vertical height” dimension, it could be easily deployed/ installed in the cabinet or ceiling partition
and integrate mass Ethernet connection in one box.
