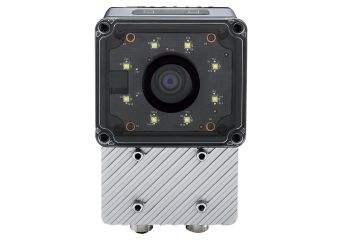

ICAM-520
Industrial AI camera equipped with NVIDIA Jetson
- Embedded with NVIDIA® Jetson Xavier™ NX
- 1.6MP 60 FPS, SONY industrial grade sensor
- Programmable variable focus lens
- Advanced LEDs illumination
- HW ISP no GPU/CPU workload
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyTechnical Specification
| Model | ICAM-520-10/12W |
|---|---|
| Sensor | SONY MX296, 1.6MP@60fps |
| Size, Shutter | 1/2.9", global Shutter, Color |
| CPU/GPU | NVIDIA Xavier NX 6-core NVIDA Camel ARM® v8.2 64-bit CPU 6MB L2 + 4MB l3 (Max. operating frequency: 1.9GHz GPU: 384-core NVIDIA Volta GPU with 48 Tensor |
| Memory/ Storage | 8 GB 128-bit LPDDR4 / 16G eMMC |
| Lens | 12 mm variable focal length: FOV 40 x 29.3 mm @ 100 mm working distance FOV 364.5 x 263.7 @ 900 mm working distance 16mm variable focal length: FOV 33.9 x 25.3 mm @ 100 mm working distance FOV 305.4 x 228.2 @ 900 mm working distance |
| LED illumination | 8 x PWM white LEDs, programmable |
| Synchronization | Hardware trigger / software trigger / free-run |
| HW ISP | Color debayering, sharpness, white balance, CCM correction, dark noise correction and brightness |
| Peripheral | 1 x USB 3.0 Type C, 1 x RS485 |
| Digital I/O | 1x trigger in, 2 x Inputs, 2 x Outputs |
| Display | 1 x HDMI 2.0 |
| LAN | 1 x 10/100/1000 Base-T |
| Power Requirements | 19~24VDC Max: 18W, typical 15W |
| Dimensions | 82mm (W) x 121mm (H) x 63 mm(D) |
| Environment | 0-45° C, 5Grms |
| Certification | CE/FCC , IP54 |
| OS | Ubuntu 18.04, Jetpack 4.6.2 |
| Software | NVIDIA Deepstream SDK |
| SDK/Utiltiy | CAMNavi SDK, Web based camera utility, IP configure tool, NVIDIA DeepStream SDK & example |
