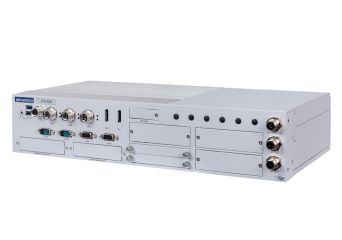

ITA-520
11th Gen Intel® Core™ H-Series platform EN50155 Fanless Computer; Compliant for Rolling Stock Applications
- 11th Gen Intel® Core™ H-Series platform with RM590E
- SuperCap-based power backup module for power failure
- Featured Time-Sensitive Network technology
- Virtualization ability for multi tasks acceptable
- Support advanced 5G and Wi-Fi 6 wireless connectivity
- LAN bypass for redundant connectivity to communicate with other devices
- Compliant with EN 50155 OT4
- Wide range 24 - 110Vdc power input, compliant with EN 50155
- Support variety of communication modules by iDoor technology
Price from €2,466.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddITA-520-W5A1P/N for ITA-520-W5A1, i5-11550HE,8GBOut of stock Warranty: €2,466.00€3,033.18Login to check your price ITA-520-W5A1P/N for ITA-520-W5A1, i5-11550HE,8GBAvailability: Out of stockNet price:€2,466.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddITA-520-W7A1P/N for ITA-520-W7A1, i7-11850HE,16GBOut of stock Warranty: €3,126.00€3,844.98Login to check your price ITA-520-W7A1P/N for ITA-520-W7A1, i7-11850HE,16GBAvailability: Out of stockNet price:€3,126.00
Description
The ITA-520 is a state-of-the-art fanless industrial computer designed specifically for rolling stock applications. With advanced technologies such as 5G, Wi-Fi 6 and Time-Sensitive Networking, it is ideally suited for demanding transportation applications where reliability and business continuity are key. It offers flexibility in configuration with iDoor modules, while its wide supply voltage range and EN 50155 compliance ensure seamless operation in harsh railroad environments.
Technical Specification
| ITA-520-W5A1 | ITA-520-W7A1 | |
| CPU | Intel Core i5-11500HE | Intel Core i7-11850HE |
| Memory | Built-in 8GB RAM Available expansion up to 32GB |
Built-in 16GB RAM Available expansion up to 32GB |
| VGA (DSub) | - | |
| HDMI | - | |
| DisplayPort | 2 | |
| Audio | 1x Line-out, 1x Mic-in | |
| Gigabit Ethernet | 3x 2.5 GbE LAN (M12 X-Coded(F)) | |
| Slot 2,5" HDD | 2x 2.5" 7mm, support RAID 0/1/5/10 (easy swap-tray) | |
| Slot mSATA | 1 | |
| Slot M.2 | 2x M.2 3042/3052 B+M Key 1x M.2 2230 A+E Key |
|
| Slot miniPCIe | 2x full-size | |
| SIM card | 4 x micro SIM slot, each M.2 slot supports dual micro SIM cards | |
| PCIe | 1 x PCIex16 thru. MCIO connector | |
| DIO | 4-bit DI/ 4-bit DO with 2KV Isolation | |
| USB 3.2 | 4 | |
| USB 2.0 | 1x M12 A-Coded (F) | |
| RS-232 | - | |
| RS-232/422/485 | 2x with 2KV Isolation | |
| TPM | TPM 2.0 | |
| IP Rating | IP40 | |
| Working temperature | -40 ~ 70°C | |
