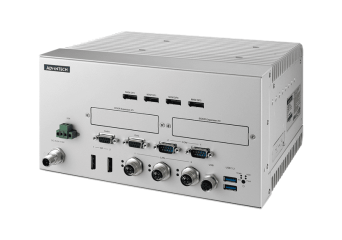

ITA-580G
Rolling Stock AI System with Intel® Core™ Processors (11th Gen) and NVIDIA Quadro MXM GPU, compliant with EN 50155
- 11th Gen Intel® Core™ H-Series platform with RM590E
- Fanless MXM GPU design and support NVIDIA Quadro MXM 3.1 Type A/B form factor GPU module
- Real-time graphic analysis catering to AI Applications
- With an MXM GPU module conforming to EN 50155 and EN 50121-3-2/EN 50121-4 standards
- SKY-MXM modules provide product life support extending beyond 5 Years
- Wide range 24 - 110VDC power input, compliant with EN 50155
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyTechnical Specification
| Specification | Value |
|---|---|
| Processor | Intel Core i7-11850HE |
| Base / Turbo Frequency | 2.6 / 4.7 GHz |
| L3 Cache | 24 MB |
| Cores / Threads | 8 P-core / 16 Threads |
| Chipset | RM590E |
| BIOS | AMI UEFI 256Mbit |
| RAM Technology | DDR4 3200 MHz, dual channel |
| SO-DIMM Slot | 1 |
| Onboard RAM | 16 GB |
| Max RAM Capacity | Up to 32 GB |
| Security | TPM 2.0 |
| Graphics Chipset | Intel UHD Graphics (11th Gen) |
| Max Graphics Frequency | 1.35 GHz |
| USB | 4 x USB 3.2 Gen 1 Type-A, 1 x USB 2.0 M12 A-Coded (F) |
| Serial Ports | 2 x DB9 RS-232/422/485, 2KV isolation |
| DIO | 1 x DB9, 4 DI / 4 DO, 2KV isolation |
| Display | 2 x DP (max 4096x2304@60Hz), 4 x DP from MXM |
| Audio | 1 x DB9, 1 x Line-out, 1 x Mic-in |
| Ethernet Controller | Intel i226-IT (3 pcs) |
| Ethernet Speed | 10/100/1000/2500 Mbps |
| Ethernet Connectors | 3 x M12 X-Coded (F) |
| SSD | 2 x 2.5" SSD, easy-swap, RAID 0/1/5/10 |
| mSATA | 1 x mSATA |
| Mini PCIe | 2 x Mini PCIe (full size) |
| M.2 | 2 x M.2 3042/3052 B+M, 1 x M.2 2230 A+E |
| PCIe | 1 x PCIe x16 via MCIO |
| SIM Slots | 4 x micro SIM (each M.2 supports 2 SIMs) |
| LEDs | Power, Storage, Battery, CPU temp. |
| Buttons | 1 x Power switch |
| Power Input Voltage | 24–110VDC |
| Power Connector | 1 x M12 K-Coded (M) 5-pin |
| Ignition | 10–30VDC, 2.5KV isolation |
| Watchdog Timer | System reset, 1–255 sec/min |
| Operating Temperature Range | -40 ~ 70°C / -25 ~ 55°C (with MXM) |
| Humidity | 5% ~ 95% @ 40°C (non-condensing) |
| Dimensions | 260 x 140.9 x 197.2 mm (without mount), 296 x 142.9 x 197.2 mm (with bracket) |
| Mounting | Desktop mounting with bracket |
| Ingress Protection | IP40 |
| Operating Systems | Windows 10, 11, Linux |
| Certifications | CE/FCC Class A, UL, CB, CCC, BSMI |
| EN 50155 Compliance | EN 50155, EN 50121-3-2/4, EN 45545-2 |
