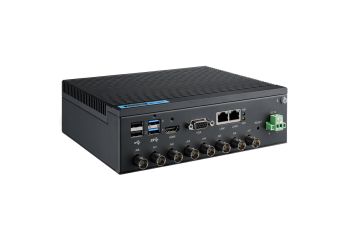

MIC-1842
12-Bit, 20MS/s, 8/4-ch AI Platform with Intel® Core™ i5/Celeron® Processor
Manufacturer: Advantech
Manufacturer: Advantech
- 8 x Simultaneously Analog Inputs, up to 20 MS/s, 12-bit resolution
- Supports digital and analog triggers
- 32-ch TTL digital I/O
- Onboard FIFO memory (16 K samples)
- 2 x RS-232 ports
- 2 x 10/100/1000 Base-T RJ-45 LAN ports
- 2 x USB 2.0 and 2 x USB 3.0 ports
- iDoor expansion supported
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyDescription
MIC-1842 is a high performance DAQ platform featuring an integrated DAQ module and signal conditioning to provide high speed analog input, TTL digital I/O, and triggering functions.
Technical Specification
|
Analog Input |
|
|
Channels |
8-ch |
|
Input Range |
Programowane w oprogramowaniu |
|
Resolution (Bits ) |
12-bit |
|
Sampling Rates (S /s ) |
do 20MS /S (sum ) |
|
Digital Input |
|
|
Channels |
32 (shared) |
|
Voltage |
Low 0.8V max. High 2V min. |
|
General |
|
|
OS Support |
Windows 10 / Linux |
|
Dimensions |
200mm x 180mm x 61mm |
|
Weight |
2 kg |
|
Hardware |
|
|
CPU |
Intel® Core™ i5-6300U processor, 3.0 GHz |
|
Memory |
4GB DDR3L (Max. 16GB expansion available) |
|
USB |
USB 2.0 *2, USB 3.0 *2 |
|
Storage |
1 x 2.5" HDD/SSD |
