Manufacturer: Advantech
- Embedded with NVIDIA Jetson T5000 up to 2070 TFLOPS (FP4)
- Supports 1x QSFP28 (4x 25GbE)
- Supports 1x 5GbE, 4x USB 3.2 Gen 2, 1x M.2 A-E key (WiFi), 1x M.2 B-key (LTE)
- Support multiple purpose of large AI model for Generative AI application
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only

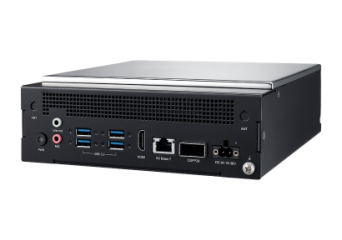

MIC-743-AT
Technical Specification
| Process | |
|---|---|
| Model | NVIDIA Jetson T5000 |
| CPU | 14 core Arm Neoverse V3AE (64-bit) SMP CPU architecture |
| L1 / L2 / L3 Cache | L1 (I, D) per core: 64KB + 64KB, L2 1MB, L3 16MB |
| GPU | 2560 NVIDIA CUDA cores, 96 5th Gen Tensor cores, MAXN: 1.57 GHz |
| Pamięć | 128GB LPDDR5X |
| Ethernet | |
| RJ45 | 1 x 10/100/1000/2500/5000 Mbps Ethernet |
| QSFP28 | 4 x 25GbE |
| I/O | |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB | 4 x USB 3.2 Gen 2 |
| OTG USB | 1 x Micro USB |
| Console | 1 x microUSB console for debug (UART to USB) |
| Audio | 1 x audio speaker out, MIC in on board |
| SIM card | 1 x Nano SIM on side of board |
| Expansion | |
| M.2 E-key | 1 x 2230 E-key (Signal: PCIe x1 + USB 2.0) |
| M.2 B-key | 1 x 3052/3042 B-key (Signal: USB 3.0 + USB 2.0) |
| TPM | 1 x TPM (onboard) |
| Storage | |
| M.2 M-key | 1 x 2280 M-key NVMe (PCIe x4) |
| Pre-installed SSD | 1TB SSD |
| Power | |
| Power Supply | Power input: 19–36V |
| Power Type | Terminal Block 2 Pin |
| Internal pin header | 3 x SMART FAN |
| Environment | |
| Operational Temperature | -10 °C ~ 35 °C with 0.7 m/s air flow |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Mechanical | |
| Dimensions (W x D x H) | 195 x 200 x 71.5 mm with rubber foot |
| Weight | 2 kg |
| Installation | Desktop |
| System | |
| Operating System | NVIDIA Jetpack 7.0 |
| Certifications | CE/FCC/CCC/KC/KCC/BSMI/UL (No RED certification) |
