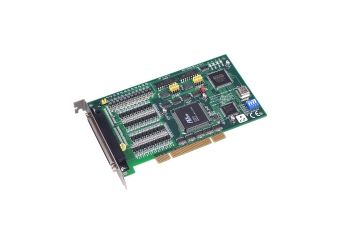

PCI-1240U

Advantech introduces the PCI-1240U 4-axis stepping/pulse-type servo motor control card designed for general-purpose extreme motion applications. The PCI-1240U is a high-speed 4-axis motion control card for the PCI bus that simplifies stepping and pulse-type servo motor control, giving you added performance from your motors. The card’s intelligent NOVA ® MCX314-motion ASIC builds in a variety of motion control functions, such as 2/3-axis linear interpolation, 2- axis circular interpolation, T/S-curve acceleration/deceleration rate and more. In addition, the PCI-1240U performs these motion control functions without processor loading during driving. For advanced applications, we supply Windows DLL drivers and user-friendly examples to decrease your programming load. Moreover, through a free bundled PCI-1240U motion utility, you can complete configuration and diagnosis easily.

• Independent 4-axis motion control
• Hand wheel and jog function
• 2/3-axis linear interpolation function
• 2-axis circular interpolation function
• Continuous interpolation function
• Programmable T/S-curve acceleration/deceleration rate
• Up to 4 MPPS output for each axis
• Two pulse output types: CW/CCW or Pulse/Direction
• Up to 1 MHz encoder input for each axis
• Two encoder pulse input types: A/B phase or Up/Down
• Constant speed control
• Position management and software limit switch function
• BoardID™ switch
