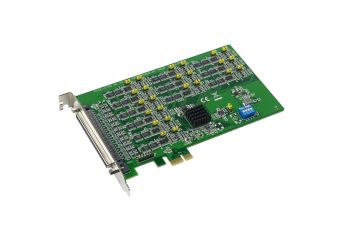

PCIE-1753
96-ch Digital I/O PCI Express Card
- Fully compatible with PCI-1753
- Up to 96 TTL digital I/O lines
- Emulates mode 0 of 8255 PPI
- Supports both dry and wet contact
- Interrupt handling capability
- Output status read-back
- Supports input data pattern match and change of state functions
- Keep I/O settings and output status after hot reset
- Buffered circuits for higher driving capacity than the 8255
- High-density 100-pin SCSI connector
Price from €223.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PCIE-1753
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPCIE-1753-B96ch TTL Digital I/O CardOut of stock Warranty: €223.00€274.29Login to check your price PCIE-1753-B96ch TTL Digital I/O CardAvailability: Out of stockNet price:€223.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSCSI-68 Wiring Terminal, DIN-rail MountOut of stock Warranty: €66.00€81.18Login to check your price SCSI-68 Wiring Terminal, DIN-rail MountAvailability: Out of stockNet price:€66.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSCSI-100 to 2*SCSI-68 Ribbon-Type Cable, 1mOut of stock Warranty: €31.90€39.24Login to check your price SCSI-100 to 2*SCSI-68 Ribbon-Type Cable, 1mAvailability: Out of stockNet price:€31.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSCSI-100 to 2*SCSI-68 Ribbon-Type Cable, 2mIn stockWarranty: €31.90€39.24Login to check your price SCSI-100 to 2*SCSI-68 Ribbon-Type Cable, 2mAvailability:In stockNet price:€31.90
Description
The PCIE-1753 is a 96-bit digital I/O card for the PCI bus. The card emulates mode 0 of the 8255 PPI chip, but the buffered circuits offer higher driving capability than the 8255. The 96 I/O lines are divided into twelve 8-bit I/O ports. Users can configure each port as input or output via software.
- Fully compatible with PCI-1753
- Up to 96 TTL digital I/O lines
- Emulates mode 0 of 8255 PPI
- Supports both dry and wet contact
- Interrupt handling capability
- Output status read-back
- Supports input data pattern match and change of state functions
- Keep I/O settings and output status after hot reset
- Buffered circuits for higher driving capacity than the 8255
- High-density 100-pin SCSI connector
