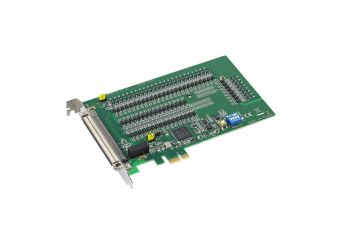

PCIE-1756
64-ch Isolated Digital I/O PCI Express Card
- Wide output range (5 ~ 40 VDC)
- High sink current on isolated output channels (500mA max./ch)
- Wide input range (10 ~ 30 VDC)
- High-voltage isolation (2,500 VDC)
- Interrupt handling capability
- 2,000 VDC ESD protection
- Either +/- voltage input for DI by group
- High over-voltage protection (70 VDC)
- Output status read-back
- Keeps the output settings and values after system hot reset
- Channel-freeze function
Price from €242.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PCIE-1756
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPCIE-1756-BE64-ch Isolated Digital I/O PCI Express CardOut of stock Warranty: €242.00€297.66Login to check your price PCIE-1756-BE64-ch Isolated Digital I/O PCI Express CardAvailability: Out of stockNet price:€242.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPCIE-1756H-BE64-ch Isolated Digital I/O PCI Express CardOut of stock Warranty: €334.00€410.82Login to check your price PCIE-1756H-BE64-ch Isolated Digital I/O PCI Express CardAvailability: Out of stockNet price:€334.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddScrew-Terminal Board with LED indicatorIn stockWarranty: €76.00€93.48Login to check your price Screw-Terminal Board with LED indicatorAvailability:In stockNet price:€76.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSCSI-100 to 2*SCSI-50 Shielded Cable, 1mOut of stock Warranty: €31.90€39.24Login to check your price SCSI-100 to 2*SCSI-50 Shielded Cable, 1mAvailability: Out of stockNet price:€31.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSCSI-100 to 2*SCSI-50 Shielded Cable, 2mIn stockWarranty: €31.90€39.24Login to check your price SCSI-100 to 2*SCSI-50 Shielded Cable, 2mAvailability:In stockNet price:€31.90
Description
The Advantech PCIE-1752, PCIE-1754 and PCIE-1756 series products offer 64 isolated digital input and output channels with 2,500 VDC isolation protection. They feature a wide input range (10 ~ 30 VDC), wide output range (5 ~ 40 VDC) and high sink current (500mA max./channel) can make PCIE-1752/1754/1756 series products easily used in industrial automation control systems. With the help of the latest Advantech driver - DAQNavi, users can perform the configuration and setting easily and efficiently in the programming.
- Wide output range (5 ~ 40 VDC)
- High sink current on isolated output channels (500mA max./ch)
- Wide input range (10 ~ 30 VDC)
- High-voltage isolation (2,500 VDC)
- Interrupt handling capability
- 2,000 VDC ESD protection
- Either +/- voltage input for DI by group
- High over-voltage protection (70 VDC)
- Output status read-back
- Keeps the output settings and values after system hot reset
- Channel-freeze function
Download
