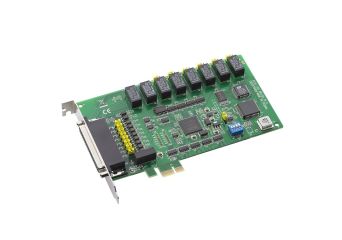

PCIE-1760

PCIE-1760 relay actuator and isolated digital input card is a PC add-on card for the PCI Express bus. It meets the PCI Express standard Rev. 1.0. It provides 8 opto-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments, 8 relay actuators that can be used as a on/off control devices or small power switches, and 2 isolated PWM (Pulse Width Modulation) outputs for custom applications. For easy monitoring, each relay is equipped with one red LED to show its on/off status. Each isolated input supports both dry contact and wet contact so that it can easily interface with other devices when no voltage is present in the external circuit.

• 8 opto-isolated digital input channels with counter/timer function
• 8 relay actuator output channels
• 2 opto-isolated PWM outputs
• Programmable digital filter function for DI
• Jumper selectable dry contact/wet contact input signals
• Up event counters for DI
• LED indicators to show activated relays
• Pattern match interrupt function for DI
• Change of state interrupt function for DI
• BoardID switch
