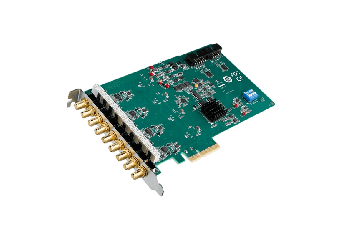

PCIE-1842

8/4-channel PCIe card for synchronous analogue measurements, 14-bit, 10 MS/s/channel

Manufacturer: Advantech

8 or 4 synchronous analog inputs depending on card version.
Very high próbking speed of up to 10 MS/s per channel.
ADC resolution of 14 bitsów.
Support for analog and digital triggering.
Input ranges ±10 V, ±5 V, ±2.5 V and ±1 V software-configurable for each channel.
Single-ended inputs for high-speed capture of analogue signals.
Built-in FIFO memory with 65,536 próbek capacity.
Capable of instant or buffered operation.
Configurable input impedance of 50 Ω or 1 MΩ using a jumper on each channel
.

Price from €817.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Description
Download
Recommended Products

PCIE-1842

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PCIE-1842-AE 8-ch, 14-bit, 10 MS/s per-channel simultaneous analog-input PCIe DAQ card	Out of stock	Warranty:		€1,501.00 €1,846.23 Login to check your price	Login to check your price	pcs.

PCIE-1842-AE

8-ch, 14-bit, 10 MS/s per-channel simultaneous analog-input PCIe DAQ card

Availability: Out of stock

Net price:

€1,501.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PCIE-1842L-AE 4-ch, 14-bit, 10 MS/s per-channel simultaneous analog-input PCIe DAQ card	Out of stock	Warranty:		€817.00 €1,004.91 Login to check your price	Login to check your price	pcs.

PCIE-1842L-AE

4-ch, 14-bit, 10 MS/s per-channel simultaneous analog-input PCIe DAQ card

Availability: Out of stock

Net price:

€817.00

Description

PCIE-1842 and PCIE-1842L are high-performance PCI Express data acquisition cards designed for high-speed, synchronous analogue measurementós in test systems, industrial automation, test labs and applications requiring precise recording of dynamic signalsós. The cards offer 8 or 4 single-ended analogue inputs, 14 bitóresolution and up to 10 MS/s per channel, making them ideal for applications where high data capture rates are important. The devices support analogue and digital triggering, instant or buffered operation and independent channelóon and off. Additional advantages include a wide selectionóof input ranges, software configuration of measurement parameters and a built-in FIFO memory that supports stable data acquisition at high próbking speeds.
