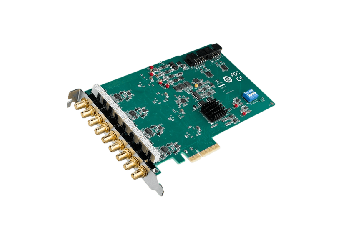

PCIE-1843

8/4-channel PCIe card for synchronous analogue measurements, 14-bit, 20 MS/s/channel

Manufacturer: Advantech

8 or 4 synchronous analog inputs depending on card version.
Very high próbking speed of up to 20 MS/s per channel.
AdC converter resolution of 14 bitsów.
Analog and digital trigger support.
Input ranges ±10 V, ±5 V, ±2.5 V and ±1 V software-configurable for each channel.
Single-ended inputs for high-speed recording of analogue signals.
Built-in FIFO memory with a capacity of 65,536 próbeks.
Instant or buffered operation, depending on application needs.
Configurable input impedance of 50 Ω or 1 MΩ for each channel.
Overvoltage protection up to ±15 V and 5 MHz analog low-pass filter

Price from €1,150.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Description
Download
Recommended Products

PCIE-1843

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PCIE-1843L-AE 4-ch, 14-bit, 20 MS/s per-channel simultaneous analog-input PCIe DAQ card	Out of stock	Warranty:		€1,150.00 €1,414.50 Login to check your price	Login to check your price	pcs.

PCIE-1843L-AE

4-ch, 14-bit, 20 MS/s per-channel simultaneous analog-input PCIe DAQ card

Availability: Out of stock

Net price:

€1,150.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PCIE-1843-AE 8-ch, 14-bit, 20 MS/s per-channel simultaneous analog-input PCIe DAQ card	Out of stock	Warranty:		€2,069.00 €2,544.87 Login to check your price	Login to check your price	pcs.

PCIE-1843-AE

8-ch, 14-bit, 20 MS/s per-channel simultaneous analog-input PCIe DAQ card

Availability: Out of stock

Net price:

€2,069.00

Description

PCIE-1843 and PCIE-1843L are high-performance PCI Express data acquisition cards designed for high-speed, synchronous analogue measurements in test systems, laboratories, industrial automation and applications requiring recording of rapid signal changes. The cards offer 8 or 4 single-ended analogue inputs, 14-bit resolution and próbing up to 20 MS/s per channel, making them ideal for dynamic waveform analysis and precision data acquisition tasks. The devices support analogue and digital triggering, instant or buffered operation, as well as independent software on/off of channelsóon. A wide selectionóof input ranges, configurable input impedance and on-board FIFO memory increase implementation flexibility and stability of operation at high próbking frequencies
