PCM-24D4R2

iDoor Module: 4-Ports Non-Isolated RS-232 mPCIe, DB37 The PCM-24 series are categorized as communication modules from Advantech iDoor Technology. They are all compatible with the PCI Express® Mini Card Specification Revision 1.2. including Isolated / Non-Isolated RS-32/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication models for data exchange during the management and machine level of automation application, Zigbee module as an IoT terminal or controller and PoE function for smart camera in detect inspection application of production. This is a flexible design that enables customers to customize their features which meet iDoor Technology.

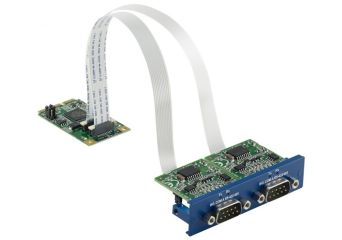

PCM-24D2R4

The PCM-24 series are categorized as communication modules from Advantech iDoor Technology. They are all compatible with the PCI Express® Mini Card Specification Revision 1.2. including Isolated / Non-Isolated RS-32/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication models for data exchange during the management and machine level of automation application, Zigbee module as an IoT terminal or controller and PoE function for smart camera in detect inspection application of production. This is a flexible design that enables customers to customize their features which meet iDoor Technology.

• Meets Advantech Standard iDoor Technology
• PCI Express® Mini Card Specification Revision 1.2 compliant
• Speeds up to 921.6 kbps for extremely fast data transmission
• Supports any baud rate setting (50bps~921.6kbps)
• Supports both Isolated & Non-Isolated Protection with 2/4 Ports RS-232/422/485
• I/O address automatically assigned by PCIe plug & play
• Operating systems supported: Windows 2000/XP/Vista/7, and Linux 2.4/2.6
• OXPCIe952/OXPCIe954 UART with 128-byte FIFOs standard
• Supports Embedded Automation PC UNO-2200/2300/2400 series
• Supports Control DIN-Rail PC UNO-1200/1300/1400 series
• Supports Control Cabinet PC UNO-3200/3300/3400 series
• Supports Control Panel Computers TPC-xx81/xx82 series
• Supports Thin Client Panel Computers TPC-xx51 series
