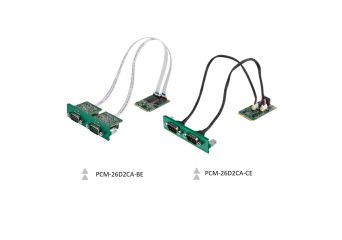

PCM-26D2CA

The PCM-26 series is categorized as Industrial Communication with Fieldbus Protocol modules from Advantech iDoor Technology. They are all compatible with the PCI Express® Mini Card Specification Revision 1.2. including Isolated / Non-Isolated RS-232/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication models for data exchange during the management and machine level of automation application, Zigbee module as an IoT terminal or controller and PoE function for smart camera in detect inspection application of production. This is a flexible design that enables customers to customize their features which meet iDoor Technology.

• Meets Advantech Standard iDoor Technology
• PCI Express® Mini Card Specification Revision 1.2 compliant
• Supports Advantech CANOpen Protocol Library
• Operates two separated CAN networks simultaneously
• High speed transmission up to 1 Mbps
• I/O address automatically assigned by PCIe plug & play
• Supports 32/64-bit Windows 2000/XP/Vista/7, Linux 2.4/2.6
• Optical isolation protection of 2,500 VDC ensures system reliability
• Includes Windows® DLL library and examples
• Supports Embedded Automation PC UNO-2200/2300/2400 series
• Supports Control DIN-Rail PC UNO-1200/1300/1400 series
• Supports Control Cabinet PC UNO-3200/3300/3400 series
• Supports Control Panel Computers TPC-xx81/xx82 series
• Supports Thin Client Panel Computers TPC-xx51 series
