PCM-3618
8-port RS-422/485 High-Speed PC/104 Module
- Eight independent RS-422/485 serial ports
- Automatic RS-485 data flow control
- Transmission speeds up to 921.6 Kbps
- Shared IRQ settings for each port
- Windows® 95/98/NT/ME/2000/XP, Windows® CE driver
- Built-in termination resistors
- LED indicators: TX, RX
- Standard PC ports: COM1, COM2, COM3, COM4 compatible
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only

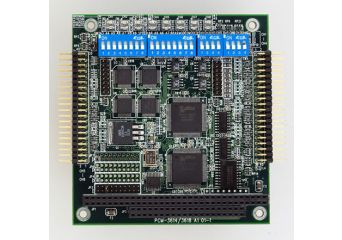

PCM-3618
Description
The PCM-3618 is a PC/104-compatible module with eight individually configurable RS-422/485 ports. It works with PC/104 CPU modules to extend additional RS-2422/485 ports. The PCM-3618 also features lots of functions such as high transmission speed of 921.6 kbps, shared IRQ and more. It also provides high-performance 16C550 UART communication chip with 16-byte FIFO to reduce CPU load. This makes the PCM-3618 especially suitable for multitasking environments.
- Eight independent RS-422/485 serial ports
- Automatic RS-485 data flow control
- Transmission speeds up to 921.6 Kbps
- Shared IRQ settings for each port
- Windows® 95/98/NT/ME/2000/XP, Windows® CE driver
- Built-in termination resistors
- LED indicators: TX, RX
- Standard PC ports: COM1, COM2, COM3, COM4 compatible
