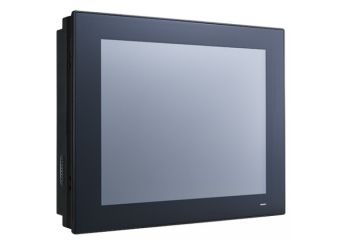

PPC-3120-RE9
12.1" Fanless Panel PC with Intel® Atom™ E3940 Processor
- 12.1" XGA TFT LCD with resistive touchscreen
- Embedded Intel® Atom™ E3940, 1.6 GHz, processor
- Up to 8 GB DDR3L 1866 SDRAM
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- Fanless design with low power consumption
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
- Optional GPIO (8 channels, TTL level) & PCI/PCIe x1 expansion kit
- No RED Certification
- No power supply, RAM, disk and operating system included
Price from €1,021.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PPC-3120-RE9
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-3120-RE9A12.1" PPC w/Intel E3940, Res.Out of stock Warranty: €1,021.00€1,255.83Login to check your price PPC-3120-RE9A12.1" PPC w/Intel E3940, Res.Availability: Out of stockNet price:€1,021.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-3120-RE9B12.1" PPC w/Intel E3940, Res.Out of stock Warranty: €1,021.00€1,255.83Login to check your price PPC-3120-RE9B12.1" PPC w/Intel E3940, Res.Availability: Out of stockNet price:€1,021.00
Description
The PPC-3120 is a 12.1" fanless panel PC equipped with a high-performance Intel® Atom™ E3940 quad-core processor that supports wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 4 x USB 3.0, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity.
- 12.1" XGA TFT LCD with resistive touchscreen
- Intel® Atom™ E3940, 1.6 GHz, processor
- Up to 8 GB DDR3L 1866 SDRAM
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- Fanless design with low power consumption
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
- Optional GPIO (8 channels, TTL level) & PCI/PCIe x1 expansion kit
- No RED Certification
