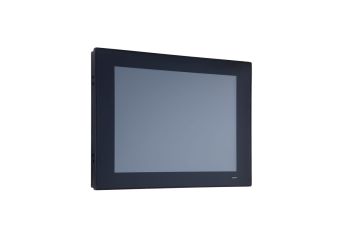

PPC-315 EHL

15" Fanless Panel PC with Intel® Celeron® J6412 Processor

Manufacturer: Advantech

Industrial-grade 15" XGA TFT LCD with 70K backlight lifetime
Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
Embedded Intel® Celeron® J6412 quad-core, 2.0 GHz, processor
Up to 32 GB DDR4 SDRAM
1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1
Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
Supports E-key for wireless module
Supports expansion via M.2 slot
Supports Windows Embedded and Android OS
No RAM, power supply, disk and operatig system included

Price from €1,075.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

PPC-315 EHL

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PPC-315-PJ60A 15" PPC w/Intel J6412, Pcap	In stock	Warranty:		€1,075.00 €1,322.25 Login to check your price	Login to check your price	pcs.

PPC-315-PJ60A

15" PPC w/Intel J6412, Pcap

Availability:

In stock

Net price:

€1,075.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PPC-315-RJ60A 15" PPC w/Intel J6412, Res.	In stock	Warranty:		€1,075.00 €1,322.25 Login to check your price	Login to check your price	pcs.

PPC-315-RJ60A

15" PPC w/Intel J6412, Res.

Availability:

In stock

Net price:

€1,075.00

Description

PPC-315 EHL is an industrial panel PC with 15" XGA LCD, powered by Intel Celeron quad core J6412 processor. With aesthetic aluminum alloy enclosure, PPC-315 EHL ensuresfanless reliability and easy maintenance in diverse industrial applications. Moreover, it provides more faster and flexible connection via 2 x 2.5G Ethernet port, 2 x USB 3.1 and1 x Type C (USB only). The PPC-315 EHL is ideal for MES, processing and general industrial equipment integration.

Technical Specification

System		PPC-315-RJ60A	PPC-315-PJ60A
	CPU	Intel® Celeron® J6412 quad core
	Frequency	2.0 GHz
	L2 Cache	1.5 MB
	RAM	1 X SDRAM DDR4 3200 MHz (max. 32G)
	Pamięć	1 X 2.5" SATA bay (optional; requires a bracket module for installation) 1 X M.2 slot: M key for storage (SATA only, 2242 & 2280)
	Network (LAN)	2 X 10/100/1000/2500 Mbps Ethernet (Intel I225-LM)
	I/O	2 X Serial ports: 1 X RS-232, 1x RS-232/422/485 (Adjustable through BIOS) 2 X USB 2.0, 2 X USB 3.1 1 X TypeC (USB only) 1 X HDMI1.4 1 X TPM 2.0
	Expansion	1 X M.2 2230 E-key for wireless card
	Watchdog Timer	255 timer levels, set up by software
Characteristics	Dimensions	392 x 314 x 55 mm (15.4 x 12.4 x 2.2 in)
Physical	Weight	5 kg (11.02 lb)
OS Support	OS Support	Microsoft Windows 10(64-bit), Linux, Android
Power Consumption	Input Voltage	12 - 30 VDC
	Power Consumption	36,5W (Burn-in test 8.1 in Windows 10, 64-bit)
LCD	Display Type	15" TFT LCD (LED backlight)
	Resolution	1024x768
	Viewing Angle	80 (left), 80 (right), 88(up), 88 (down)
	Luminance (cd/m²)	300
	Contrast Ratio	2000
	Backlight Lifetime	70,000 hr (min.)
Touchscreen	Type	ELO 5-wire resistive touch	Projected Capacitive Multi-touch
	Light Transmission	80+5% at 550 nm wavelength	88+2%
	Controller	USB interface	USB interface
	Durability (Touches)	Greater than 35 million touches in one location without failure	Cover glass > 7H
Środowisko	Operating Temperature	-10 - 50°C (14 - 122°F)
	Storage Temperature	-20 - 60 °C (-4 - 140 °F)
	Relative Humidity	10 - 95% @ 40 °C (non-condensing)
	Shock	Przyspieszenie szczytowe 10 G podczas pracy (czas trwania 11 ms), IEC 60068-2-27
	Vibration	Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
	EMC	CE, FCC Class B, BSMI, UKCA, VCCI
	Safety	CB, CCC, BSMI, UL, UKCA
	Front Panel Protection	IP66 compliant
