Manufacturer: Advantech
- Industrial 15" TFT XGA LED panel with 50k lifetime backlight
- Durable 5-wire Resistive Touch Screen
- Embedded Intel® processor, quad core Celeron® N2930 1.83GHz onboard
- System memory up to 8 GB DDR3L SDRAM
- Compact Fanless Design with solid AI Alloy enclosure
- True-flat with IP65 certified front panel protection
- E-Eye Monitoring and Protection
- Supports Full-size Mini PCIe Expansion
- Supports USB 3.0 & VESA 75
- Supports Windows Embedded and Android
- No RED Certification
- No power supply, RAM, disk and operating system included.
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyDescription

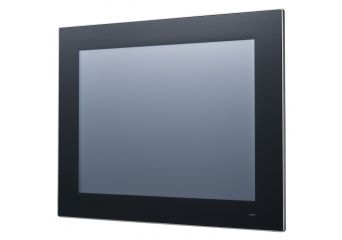

The PPC-3150S is a high value, ultraslim Panel PC with a 15" XGA LCD; the low power, Intel® Celeron N2930 1.86GHz processor provides high computing performance in a compact, fanless, embedded system. With a high durability design, the PPC-3150S is equipped with a true-flat touch screen with IP65 front panel protection, die-cast AI alloy enclosure, and 5-wire resistive touch screen. It supports two serial ports, three USB ports, and two GbE LANs to satisfy various industrial applications. To provide further system monitoring and protection, the E-Eye in the PPC-3150S rear cover gives clear indication of system operating status, for detection and analysis.
- Industrial 15" TFT XGA LED panel with 50k lifetime backlight
- Durable 5-wire Resistive Touch Screen
- Embedded Intel® processor, quad core Celeron® N2930 1.83GHz onboard
- System memory up to 8 GB DDR3L SDRAM
- Compact Fanless Design with solid AI Alloy enclosure
- True-flat with IP65 certified front panel protection
- E-Eye Monitoring and Protection
- Supports Full-size Mini PCIe Expansion
- Supports USB 3.0 & VESA 75
- Supports Windows Embedded and Android
- No RED Certification
Technical Specification
| Display | |||
|---|---|---|---|
| Diagonal | 15" | ||
| Resolution | 1024 x 768 | ||
|
Luminance |
400 | ||
| Contrast | 700 | ||
| Angles (H/V°) | 160/140 | ||
| Touchtype | ELO 5-wire resistive | ||
| CPU | |||
| CPU | Intel® Celeron® N2930 | ||
| Frequency | 1.83GHz | ||
| Cache | 2MB | ||
| RAM | |||
| Technology | DDR3L 1333 MHz | ||
| Max. Capacity | Up to 8Gb | ||
| Socket | SO-DIMM | ||
| Ethernet | |||
| LAN |
2 x 10/100/1000 Mbps |
||
| H/W Monitoring | |||
| Watchdog timer |
255 timer levels |
||
| I/O | |||
| Serial ports |
1 x RS-232, 1 x RS-232/422/485 |
||
| USB |
2 x USB 2.0, 1 x USB 3.0 |
||
| HDMI |
N/A |
||
| Expansions | |||
| Mini-PCIe | 1 x Full-size | ||
| Mass memory | |||
| SATA | 1 x 2.5" SSD/ HDD (SATA, Max. 7mm) 1 x mSATA |
||
| Environment | |||
| Working temp. | 0 ~ 50°C (SSD) | ||
| OS Support | Windows, Linux | ||
| Physical properties | |||
| Dimensions | 391.36 x 312.46 x 51.5 mm | ||
| IP Rating | IP66 (front) | ||
| Dimensions | 391.36 x 312.46 x 51.5 mm | ||
| Mounting | Panel-mount, wall-mount, VESA | ||
| Certificates | CE, FCC Class B, BSMI | ||
| Additional information | |||
| Input voltage | 12 ~ 24 VDC | ||
Download
