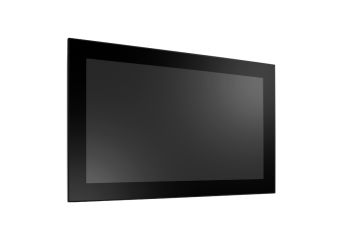

PPC-315W TGL

15.6" Fanless Panel PC with Intel® Core™ i7/i5/i3 processor

Manufacturer: Advantech
Manufacturer: Advantech
  • Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
  • True-flat touchscreen with multi-touch projected capacitive contr
  • High-performance, fanless 11th generation Intel® Core™ i processor
  • Dual channel memory slots, max 64G
  • Compact, fanless design with aluminum alloy enclosure
  • IP66-rated front panel
  • Supports dual displays (1 x external HDMI)
  • 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
  • Support TPM2.0 hardware security
Price from €2,294.00 Net price

High price? Log in and buy cheaper

In delivery

Free shipping from €500

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PPC-315W-PB50A
    Intel Core i5-1145G7E Fanless 15.6" FHD PPC
    In delivery Warranty: 24 months
    €2,294.00
    €2,821.62
    Login to check your price

Description

PPC-315w TGL is an 15.6” Fanless Panel PC equipped Intel 11th Gen Core i7/i5/i3, providing high computing performance with robust aluminum alloy enclosure. It also leveragesM.2 M key NVMe PCIe to accommodate extremely high date rate and low latency advantage. PPC-315w TGL features 3 x USB 3.2, 2 x series ports and 1 x HDMI for flexible accessand connection. The PPC-315w TGL is an excellent solution to enable quick date capture, processing and data digitalization in various industrial applications.

Technical Specification


System

CPU

i3-1115G4E

i5-1145G7E

i7-1185G7E

Cores

Dual Core

Quad Core

Quad Core

Frequency

2,2 GHz; 3,90 GHz with turbo

2,6 GHz; 4,1 GHz with turbo

2,8 GHz; 4,4 GHz with turbo

Cache

6 MB

8 MB

12 MB

TDP

15

15

15

RAM

2 x SO-DIMM DDR4 3200 MHz (maks. 32 GB x 2)

Storage

1 x 2.5" SATA bay
1 x M.2 2280 M-Key bay (Co-lay SATA, for storage only)

LAN

1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
1 x Intel I225LM controller; Speed: 10M / 100M / 1000M / 2500M

I/O

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
3 x USB 3.2, 1 x USB 2.0, 2 x USB 2.0 (internal), 1 x Type C (USB only)
1 x HDMI1.4
1 x TPM 2.0
1 x Line out

Speaker

2 X 1 W

Expansion

1 x M.2 2230 E-key for wireless card

Watchdog Timer

255 timer levels, set up by software

Physical

Dimensions

419,7 x 269,0 x 62,1 mm (16,5 x 10,6 x 2,4 cala )

Characteristics

Weight

4,8 kg (10,67 lb)

OS Support

OS Support

Microsoft Windows 10 (64-bit), Windows 10 IOT LTSC, Linux


Power Consumption

Input Voltage

12 - 30 VDC

Power Consumption

53W (Burn-in test in Windows 10 64-bit)


LCD

Display Type

15,6" FHD LCD (LED backlight)

Resolution

1920 X 1080

Viewing Angle

80 (left), 80 (right), 85 (up), 85 (down)

Luminance(cd/m2)

450

Contrast

800

Backlight Lifetime

50 000 h. (min.)


Touchscreen

Touch Type

10-point multi-touch projected capacitive

Light Transmission

90% + 2%

Controller

USB interface


Environment

Operating Temperature

-10 - 50 °C (14~122 °F)

Storage Temperature

-20 - 60 °C (-4 - 140 °F)

Relative Humidity

10 - 95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC klasa B, BSMI, VCCI, UKCA

Safety

CB, UL, CCC, BSMI, UKCA

Protection

IP66 compliant
