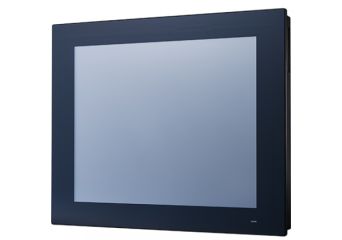

PPC-3170
17” Fanless Panel PC with Intel Atom E3845 Processor
- 17” TFT SXGA LCD with resistive touchscreen
- Embedded Intel Atom Quad-Core E3845 1.91G
- Fanless and Slim design
- Supports one internal 2.5” SATA HDD, one mSATA socket
- Built-in one PCI or one PCIe x1 expansion slot
- Wide operating temp. range from -20~60°C
- Wide range power input for 9~32VDC
- One isolated RS-422/485 with Autoflow, Dual Intel GbE & One optional GPIO (8 channels, TTL level)
- No RED Certification
- No power supply, RAM, disk and operating system included.
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyAccessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWall mount kit A800B for PPCIn stockWarranty: €64.00€78.72Login to check your price Wall mount kit A800B for PPCAvailability:In stockNet price:€64.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-3150-COMEKit to install extra COMx2/DIOx1 for PPC-3150In stockWarranty: €22.00€27.06Login to check your price PPC-3150-COMEKit to install extra COMx2/DIOx1 for PPC-3150Availability:In stockNet price:€22.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC ARM VESA Standard (A-CLEVER)Out of stock Warranty: €159.00€195.57Login to check your price PPC ARM VESA Standard (A-CLEVER)Availability: Out of stockNet price:€159.00
Description
The PPC-3170 is a 17” fanless panel PC that doesn’t only deliver high performance with an Intel quad-core Atom processor but also supports a wide operating temp. (-20~60°C) and wide range of power input (9~32VDC). It consolidates performance and reliability in one system. With multiple I/Os such as 4 x COM, 1 x USB3.0, 1x isolated RS-422/485 and dual Intel Gigabit Ethernet make it easier to connect to devices and be integrated into machine building industry. The PCI/PCIe expansion is allowed to add on field bus or proprietary card makes more application possibility.
- 17” TFT SXGA LCD with resistive touchscreen
- Embedded Intel Atom Quad-Core E3845 1.91G
- Fanless and Slim design
- Supports one internal 2.5” SATA HDD, one mSATA socket
- Built-in one PCI or one PCIe x1 expansion slot
- Wide operating temp. range from -20~60°C
- Wide range power input for 9~32VDC
- One isolated RS-422/485 with Autoflow, Dual Intel GbE & One optional GPIO (8 channels, TTL level)
- No RED Certification
Technical Specification
| PPC-3170 | |
| Processor | Intel® Atom E3845 quad core |
| RAM | Up to 8 GB DDR3L |
| VGA (DSub) | 1 |
| HDMI | - |
| DP | 1 |
| Audio | Mic in, Line out |
| Gigabit Ethernet | 2 |
| 2,5" HDD | 1 |
| Slot mSATA | 1 |
| Mini PCIe | 1 |
| USB 3.0 | 1 |
| USB 2.0 | 3 |
| RS-232 | 2 |
| RS-422/485 | 1x isolated |
| TPM | - |
| Display | 17" TFT LED panel |
| Resolution | 1280 x 1024 |
| Contrast | 800 |
| Luminance | 350 |
| Touch Type | 5-wire analog resistive |
| Controller | USB interface |
| Working temp. | -20°C ~ +60°C |
