PPC-318SW ADL_N

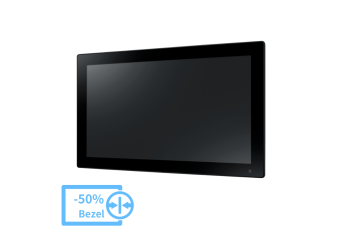

18.5" Fanless Widescreen Panel PC with Intel Processor N97, Quad-Core
- Intel Processor N97, Quad-Core, 2.0GHz
- 18.5" true-flat TFT LCD with projected capacitive touch control
- Fanless design with low power consumption
- Supports 1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 1), 1 x 2.5" SATA bay for storage
- Supports dual displays (1 x external DP)
- Supports iDoor, PCI or PCIe
- Supports VESA 100
- IP66-rated front panel
Price from €1,126.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PPC-318SW ADL_N
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-318SW-PN9A18.5" PPC w/Intel N97, P-CapIn stockWarranty: €1,126.00€1,384.98Login to check your price PPC-318SW-PN9A18.5" PPC w/Intel N97, P-CapAvailability:In stockNet price:€1,126.00
Technical Specification
| PPC-318SW | |
| Processor | Intel N97 quad core |
| RAM | up to 16GB SODDR5 |
| VGA (DSub) | - |
| HDMI | - |
| DP | 1 |
| Audio | Line out |
| Gigabit Ethernet | 2 |
| 2,5" HDD | 1 |
| Slot mSATA | - |
| Slot M.2 | 1 x M.2 M Key 2242/2280 1 x M.2 B key 2242 or 3042/3052 1 x M.2 E Key 2230 |
| Slot miniPCIe | - |
| Additional Expansions | 1 x iDoor (optional) 1 x PCI or PCIe x1 (optional) |
| USB 3.2 | 2 |
| USB 2.0 | 2 |
| RS-232 | - |
| RS-232/422/485 | 2 |
| TPM | - |
| Display | 18.5" WXGA TFT LED LCD |
| Resolution | 1366 x 768 |
| Contrast | 1000 |
| Luminance | 450 |
| Touch type | Multi-touch projected capacitive |
| Conrtoller | USB interface |
| Working temp. | -10°C ~ +50°C |
Download
