PPC-321SW RPL

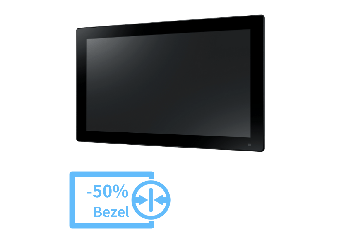

21.5" fanless panel PC with 13th gen Intel Core processors (i7/i5/i3)
- Built-in Intel Core i3/i5/i7 13th gen.
- Industrial-grade true-flat touchscreen with IP66-rated front panel
- High-performance, fanless 13th gen Intel Core processors
- Slim Compact, fanless design with aluminum alloy enclosure
- Supports dual displays (1x external DP), iDoor and PCI or PCIe
- 1x M.2 M Key 2242/2280 (SATA or NVME PCIe x4) for storage, support SATA RAID 0,1
- 2x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- Supports VESA 100
- Support TPM2.0 hardware security
- Support iDoor, PCI or PCIe
- No RAM, storage, power supply and operating system included
Price from €1,828.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PPC-321SW RPL
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-321SW-PDI3A21.5" PPC w/ i3-1315UE, P-CapOut of stock Warranty: €1,828.00€2,248.44Login to check your price PPC-321SW-PDI3A21.5" PPC w/ i3-1315UE, P-CapAvailability: Out of stockNet price:€1,828.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-321SW-PDI5A21.5" PPC w/ i5-1335UE, P-CapOut of stock Warranty: €2,029.00€2,495.67Login to check your price PPC-321SW-PDI5A21.5" PPC w/ i5-1335UE, P-CapAvailability: Out of stockNet price:€2,029.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-321SW-PDI7A21.5" PPC w/i7-1365UE, P-CapOut of stock Warranty: €2,307.00€2,837.61Login to check your price PPC-321SW-PDI7A21.5" PPC w/i7-1365UE, P-CapAvailability: Out of stockNet price:€2,307.00
Technical Specification
| PPC-321SW RPL | |
| Processor | Intel Core i3/i5/i7 13th gen. |
| RAM | Up to 32 GB SODDR5 |
| VGA (DSub) | - |
| HDMI | - |
| DP | 1 |
| Audio | Line out |
| Gigabit Ethernet | 2x 2.5 GbE LAN |
| 2,5" HDD | 1 |
| Slot mSATA | - |
| Slot M.2 | 1x M.2 M Key 2242/2280 (SATA or NVME PCIe x 4), support SATA RAID 0,1 1x M.2 B key 2242 or 3042/3052 (SATA, PCIe X1 ,USB 3.0 & SIM slot) 1x M.2 E Key 2230 (PCIe & USB 2.0) |
| USB 3.2 | 3 |
| USB 2.0 | 1 |
| RS-232/422/485 | 2 |
| Slot miniPCIe | - |
| Expansions | 1x iDoor (optional) 1x PCI or PCIe x1 (optional) |
| TPM | Supports TPM 2.0 |
| Display | 21.5" TFT LCD (LED backlight) |
| Resolution | 1920 x 1080 |
| Contrast | 1000 |
| Luminance | 250 |
| Touch type | Multi-touch projected capacitive |
| Conrtoller | USB interface |
| Front Panel Protection | IP66 compliant |
| Working temp. | -10°C ~ +50°C |
Download
