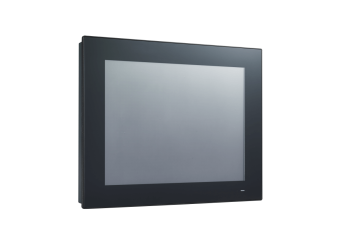

PPC-415 TGL

15" Fanless Panel PC with Intel® 11th Gen Core™ I7/i5/i3 processor

Manufacturer: Advantech

15" XGA TFT LCD flat panel with projected capacitive (default) or resistive (by reuqest) touchscreen
Embedded Intel® Core™ i7-1185G7E/i5-1145G7E/i3-1115G4E processor with fanless system design
Dual channel memory slots, max 64G
Supports either 1 x PCIe x4 or 1 x PCI
1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID
1 x isolated RS-422/485 with auto flow
Wide power input range (9 ~ 32 VDC)
Dual 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
3 x Independent displays
No power supply, RAM, disk and operating system included

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 3 models

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

PPC-415 TGL

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PPC-415-PB30A 15" PPC w/Intel i3-1115G4E, Pcap	In stock	Warranty:		€1,816.00 €2,233.68 Login to check your price	Login to check your price	pcs.

PPC-415-PB30A

15" PPC w/Intel i3-1115G4E, Pcap

Availability:

In stock

Net price:

€1,816.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PPC-415-PB50A 15" PPC w/Intel i5-1145G7E, Pcap	In stock	Warranty:		€2,110.00 €2,595.30 Login to check your price	Login to check your price	pcs.

PPC-415-PB50A

15" PPC w/Intel i5-1145G7E, Pcap

Availability:

In stock

Net price:

€2,110.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
PPC-415-PB70A 15" PPC w/Intel i7-1185G7E, Pcap	In stock	Warranty:		€2,463.00 €3,029.49 Login to check your price	Login to check your price	pcs.

PPC-415-PB70A

15" PPC w/Intel i7-1185G7E, Pcap

Availability:

In stock

Net price:

€2,463.00

Description

Designed for high-performance computing 11th gen applications, PPC-415 provides a superior human-machine interface and reliability, with multi-touch screen, rich I/O and aluminumalloy front bezel. The inclusion of PCIe/PCI slot for fieldbus or proprietary card expansion increases the system’s compatibility for diverse applications. In addition, Time SensitiveNetwork(TSN)configuration integrated allows more possibilities for optimized industrial applications.

Technical Specification

	PPC-415-PB70A	PPC-415-PB50A(U)	PPC-415-PB30A
System
CPU	i7-1185G7E	i5-1145G7E	i3-1115G4E
Cores	4	4	2
Frequency	1.8 GHz	1.5 GHz	2.2 GHz
Cache	12 MB	8 MB	6 MB
TDP	15W	15W	15W
RAM	2 x SODIMM, DDR4 3200, max. 32GB x 2
Storage	1 x 2.5" SATA bay (Max. 7mm) 1 x M.2 2242/2280 M Key slot for Storage(SATA or NVME PCIe)
Network (LAN)	2 x Intel I225LM controller; Speed: 10M / 100M / 1000M / 2.5G
I/O	5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation,2 x RS-232 (on right side optional) 4 x USB 3.2, 1 x USB2.0 (optional) 1 x Line-Out, 1 x Mic-In 1 x HDMI 1.4 1 x DisplayPort (1.2) 1 x 8bit GPIO (Optional) 1 x TPM2.0
Expansion	1 x M.2 2230 E Key slot for wireless card 1 x M.2 3042/3052 B key slot for 4G/5G module (PCIe or USB2.0) 1 x PCIe x 4 (Default); 1 x PCI (in the accessory box)
Watchdog Timer	255 timer levels, setup via software
Speaker	2 x 1W
Characteristics
Dimensions	392.3 x 313.6 x 55.2 mm (15.44 x 12.35 x 2.17 in)
Enclosure	Front bezel: Die cast aluminum alloy Back housing: PC+ABS
Mounting	Panel Mount (Default); VESA Mount/ Desktop/ Wall (optional
Physical
Weight	5.4 kg (11.90 lb)
OS Support
OS Support	Microsoft® Windows 10(64-bit), Win10 IOT LTSC, Linux
Power Consumption
Input Voltage	9 - 32 VDC
Power Consumption	i5-1145G7E: 60W (Burn-in test 8.1 in Windows 10, 64 bit)
LCD
Display Type	15" TFT LCD (LED backlight)
Resolution	1024 x 768
Viewing Angle	88° (left), 88° (right), 88° (up), 88° (down)
Luminance (cd/m²)	500
Contrast	2500
Backlight Lifetime	70,000 hr (min.)
Touchscreen
Type	ELO Projected Capacitive 10-point Multi-touch
Light Transmission	85+3%
Controller	USB interface
Environment
Operating Temperature	-10 - 50°C (14 - 122°F)
Storage Temperature	-40 - 60 °C (-4 - 140 °F)
Relative Humidity	10 - 95% @ 40 °C (non-condensing)
Shock	Operating 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant
Vibration	Test losowych wibracji podczas pracy 5 - 500Hz, 2Grms z SSD, IEC 60068-2-64
EMC	CE, FCC Class B, BSMI, UKCA, VCCI
Safety	CB, CCC, BSMI, UL, UKCA
Front Panel Protection	IP66-rated
