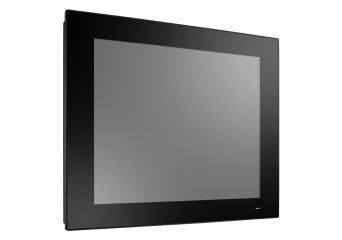

PPC-417 EHL
17" Fanless Panel PC, TFT LCD 17", Intel Atom x6425E, -20 ~ 60 °C
- 17” SXGA TFT LCD with resistive (default)or projected capacitive(by request) touchscreen
- Embedded Intel® Atom™ x6425E quad-core, 2.0 GHz processor
- Fanless, slim design
- Supports 1 x 2.5" SATA and 1 x M.2 B key slot for expansion
- 1 x PCI/PCIe x1 expansion slot
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control
- Dual 2.5GBASE-T Ethernet supports Time-Sensitive Network(TSN) technology
- No power supply, RAM, disk and operating system included
Price from €1,376.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PPC-417 EHL
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-417-RX6A17" PPC w/Intel x6425E, Res.In stockWarranty: €1,376.00€1,692.48Login to check your price PPC-417-RX6A17" PPC w/Intel x6425E, Res.Availability:In stockNet price:€1,376.00
Technical Specification
| PPC-417 EHL | |
| Processor | Atom x6425E quad core |
| RAM | up to 32 GB DDR4 |
| VGA (DSub) | - |
| HDMI | 1 |
| DP | 1 |
| Audio | Mic in, Line out |
| Gigabit Ethernet | 2 |
| 2,5" HDD | 1 |
| Slot mSATA | - |
| Slot M.2 | 1 x M.2 B key bay 1 x M.2 2230 E Key slot for wireless card |
| USB 3.2 | 2 |
| USB 2.0 | 2 |
| RS-232 | 2 |
| RS-422/485 | 1 |
| Slot miniPCIe | - |
| TPM | TPM 2.0 |
| Display | 17" TFT LED panel |
| Resolution | 1280 x 1024 |
| Contrast | 800 |
| Luminance | 350 |
| Touch type | 5-wire analog resistive |
| Conrtoller | USB interface |
| Working temp. | -20°C ~ +60°C |
