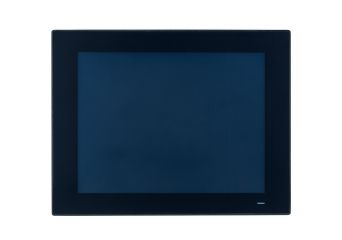

PPC-6121
12.1" Panel PC with 8/9th Generation Intel Core
- 12.1" TFT XGA LCD panel with resistive touch control
- Built-in 8/9th generation Intel Core i/Celeron processor (thermal power design: 35W)
- 2 x 260-pin SO-DIMM DDR4 2666 MHz (max. 32 GB)
- 1 x M.2 2230 (E key)
- 1 x mSATA bay (SATA SSD + mSATA support RAID 0&1)
- 1 x Optional TPM2.0 & 1 x Optional PCI/PCIe x4 expansion kit
- 1 x Isolated RS422/485 (terminal block)
- 1 x VGA and 1 x HDMI
- No RAM, disk, operating system and power supply included
Price from €1,317.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-6121-R8IA12.1" PPC w/8&9th Gen Intel Core i, Res.Out of stock Warranty: €1,317.00€1,619.91Login to check your price PPC-6121-R8IA12.1" PPC w/8&9th Gen Intel Core i, Res.Availability: Out of stockNet price:€1,317.00
Technical Specification
| PPC-6121 | |
| Processor | Intel Core 8th/9th gen. |
| RAM | Up to 32 GB SO-DIMM DDR4 |
| VGA (DSub) | 1 |
| HDMI | 1 |
| DP | - |
| Audio | Mic in, Line out |
| Gigabit Ethernet | 2 |
| 2,5" HDD | 1 |
| Slot mSATA | 1 |
| RAID | SATA SSD + mSATA support RAID 0&1 |
| Mini PCIe | - |
| M.2 | 1 x M.2 2230(E key) |
| PCIe x4 | 1 |
| USB 3.1 | 4 |
| RS-232 | 4 |
| RS-422/485 | 1 |
| GPIO | 1 (TTL, 8 pin programmable) |
| TPM | Optional |
| Display | 12.1" TFT LCD panel |
| Resolution | 1024 x 768 |
| Contrast | 1000 |
| Luminance | 600 |
| Touch Type | 5-wire resistive |
| Controller | USB interface |
| Working temp. | 0°C ~ +50°C |
| Front Panel Protection | IP66 compliant |
Download
