PPC-621W

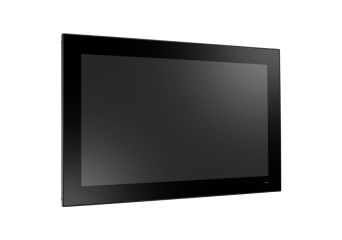

21.5" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards
- 21.5" true-flat panel PC with multi-touch projected capacitive
- Supports certified mini-ITX motherboards (up to 65W TDP processor)
- PCI or PCIe expansion slots
- Front-facing power status LED indicators
- IP66-rated front panel
- Support dual HDD drawer
- No motherboard, processor, RAM, disk, operating system and power supply included
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-621W-PTA21.5" FHD PPC Optimized Chassis, Pcap, 24VDCOut of stock Warranty: €1,416.00€1,741.68Login to check your price PPC-621W-PTA21.5" FHD PPC Optimized Chassis, Pcap, 24VDCAvailability: Out of stockNet price:€1,416.00
Description
The PPC-621W, a panel PC chassis with a 21.5" TFT full HD LCD 1920 x 1080 resolution, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern.
Technical Specification
|
PPC-621W-PTA |
|||
|
System |
Storage |
2 x 2.5" SATA HDD bay |
|
|
I/O |
4 x Reserved ports (DB9) 2 x WLAN antenna holes 1 x DC-In 1 x Power switch Reserved opening: According to the PPC-MB series motherboard specifications |
||
|
Expansion |
1 x PCIe x4 or 2 x PCI (in the accessory box), 2 x PCIe x1 (optional), 1 x PCIe x1 + 1 x PCI (optional) 2 x PCIe x8 (optional, only for PPC-MB-6X0) 1 x PCIe x16 (optional,only for PPC-MB-6X0) |
||
|
Speaker |
2 x 1W |
||
|
Fan |
2 x 12V; 60 x 60 x 25 mm (2.36 x 2.36 x 0.98 in) |
||
|
Characteristics |
Dimensions |
558 x 349.8 x 108.2mm (21.9" x 13.7" x 4.26") |
|
|
Physical |
Weight |
8.4kg (18.5Ib) |
|
|
OS Support |
OS Support |
Zgodnie ze specyfikacją płyty głównej |
|
|
Power Consumption |
Input Voltage |
24VDC ±20%, 12A |
|
LCD |
Type |
21,5" TFT LED panel |
|
|
Resolution |
1920 x 1080 |
||
|
Viewing Angle |
89 (left), 89 (right), 89 (up), 89 (down) |
||
|
Luminance (cd/m²) |
250 |
||
|
Contrast |
1000 |
||
|
Backlight Lifetime |
50,000 hr (min.) |
||
|
Touchscreen |
Type |
10-point multi-touch projected capacitive |
|
|
Light Transmission |
≥ 88% |
||
|
Controller |
USB interface |
||
|
Environment |
Operating Temperature |
0 ~ 50 °C (32 ~ 122 °F) (With 35W CPU) 0 ~ 45 °C (32 ~ 113 °F) (With 65W CPU) |
|
|
Storage Temperature |
-20 ~ 60 °C (-22 ~ 140 °F) |
||
|
Relative Humidity |
10 - 95% @ 40 °C (non-condensing) |
||
|
Shock |
Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant |
||
|
Vibration |
Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with SSD, IEC 60068-2-64 compliant |
||
|
EMC |
CE,FCC,Class A, UKCA, VCCI |
||
|
Safety |
CB,CCC,UL, UKCA |
||
|
Front Panel Protection |
IP66 compliant |
||
Download
