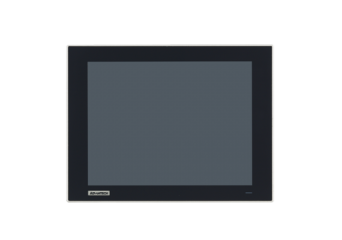

TPC-1251T(C)

The TPC-1251T(B) thin-client terminal is the next-generation model of Advantech’s TPC-1251T(A) industrial panel PC. Equipped with a 12" XGA TFT LED LCD, low-power Intel®Atom™ E3845, 1.91GHz, quad-core processor, and 4 GB of DDR3L SDRAM, TPC-1251T(B) delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, TPC-1251T(B) supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and features a true-flat 5-wireresistive touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and 100 x 100 VESA mount kit. Moreover, with the provision of a full-size mini PCIe slot that supports mSATA signals and Advantech’s iDoor technology, TPC-1251T(B) can be easily expanded to provide additional I/O ports, isolated digital I/O, fieldbus protocols, MRAM.

• Industrial-grade 12" XGA TFT LCD with 50K lifetime and LED backlight
• Intel® Atom™ E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM
• True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
• Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
• Front-facing LED indicators to show operating status
• Advantech iDoor technology and SSD/HDD bay
• Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
• Supports VESA mount (100 x 100 mm)
• Supports Advantech’s WISE-PaaS/RMM remote management software 12" XGA TFT LED LCD Thin-Client Terminal with Intel® Atom™ ProcessorIntroduction
