TPC-317

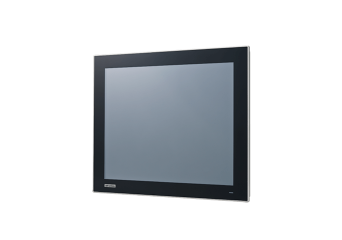

17" SXGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel Core i3/ i5/ i7 Processor, built-in 8G DDR4 RAM
Manufacturer: Advantech
Manufacturer: Advantech
- Industrial-grade 17" SXGA TFT LCD with 50K lifetime and LED backlight
- Embedded 8th Gen. Intel Core i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor
- Built-in 8 GB DDR4 SO-DIMM, up to 64GB
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Diverse system I/O and isolated digital I/O via iDoor technology
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Support TPM2.0 hardware security
- No power supply, disk and operating system included
Price from €2,195.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTPC-317-R833B17" SXGA Touch Panel PC w/Core i3 CPU, 8G RAMIn stockWarranty: €2,195.00€2,699.85Login to check your price TPC-317-R833B17" SXGA Touch Panel PC w/Core i3 CPU, 8G RAMAvailability:In stockNet price:€2,195.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTPC-317-R853B17" SXGA Touch Panel PC w/Core i5 CPU, 8G RAMIn stockWarranty: €2,424.00€2,981.52Login to check your price TPC-317-R853B17" SXGA Touch Panel PC w/Core i5 CPU, 8G RAMAvailability:In stockNet price:€2,424.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTPC-317-R873B17" SXGA Touch Panel PC w/Core i7 CPU, 8G RAMOut of stock Warranty: €2,747.00€3,378.81Login to check your price TPC-317-R873B17" SXGA Touch Panel PC w/Core i7 CPU, 8G RAMAvailability: Out of stockNet price:€2,747.00
Description
Technical Specification
| TPC-317 (EN) | TPC-317-R833A | TPC-317-R853A | TPC-317-R873A |
| Environment | |||
| Ingress Protection | Front Panel IP66 | Front Panel IP66 | Front Panel IP66 |
| Operating Temperature | -10~55 °C (14~131 °F) | -10~55 °C (14~131 °F) | -10~55 °C (14~131 °F) |
| Storage Temperature | -20~70 °C (-4~158 °F) | -20~70 °C (-4~158 °F) | -20~70 °C (-4~158 °F) |
| Vibration protection | 1 Grms, random | 1 Grms, random | 1 Grms, random |
| Ethernet | |||
| Speed | 10/100/1,000 Mbps | 10/100/1,000 Mbps | 10/100/1,000 Mbps |
| General | |||
| Humidity (Operating) | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) |
| Hardware | |||
| BIOS | AMI UEFI | AMI UEFI | AMI UEFI |
| Certification | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI |
| CPU | 8th Gen. Intel Core i3-8145UE 2.20GHz Dual-Core | 8th Gen. Intel Core i5-8365UE 1.60GHz Quad-Core | 8th Gen. Intel Core i7-8665UE 1.70GHz Quad-Core |
| I/O | 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot | 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot | 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot |
| LAN | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps |
| Memory | 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot | 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot | 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot |
| OS Support | Microsoft Windows 10 LTSC, Linux, Android | Microsoft Windows 10 LTSC, Linux, Android | Microsoft Windows 10 LTSC, Linux, Android |
| Power Consumption | 45.48 W @ 24 VDC | 45.48 W @ 24 VDC | 45.48 W @ 24 VDC |
| Storage | 1 x SATA M.2 SSD slot (2280 M-Key); 1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key |
1 x SATA M.2 SSD slot (2280 M-Key); 1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key |
1 x SATA M.2 SSD slot (2280 M-Key); 1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key |
| Watchdog Timer | 15~255 s | 15~255 s | 15~255 s |
| I/O Interface | |||
| Audio | Line-Out, Microphone | Line-Out, Microphone | Line-Out, Microphone |
| Displays | 1 x DP | 1 x DP | 1 x DP |
| Expansion | 1 x Full-size mPCIe Slot, 1 x SIM card Slot | 1 x Full-size mPCIe Slot, 1 x SIM card Slot | 1 x Full-size mPCIe Slot, 1 x SIM card Slot |
| Serial Ports | 2 x RS-232/422/485 | 2 x RS-232/422/485 | 2 x RS-232/422/485 |
| LCD Display | |||
| Backlight Life (hrs) | 50000 | 50000 | 50000 |
| Display Size | 17" | 17" | 17" |
| Luminance (cd/m2) | 300 | 300 | 300 |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | 1280 x 1024 |
| Viewing Angle (H/V°) | 160/140 | 160/140 | 160/140 |
| Mechanical | |||
| Dimension (W x H x D) | 410.4 x 343.4 x 68 mm | 410.4 x 343.4 x 68 mm | 410.4 x 343.4 x 68 mm |
| Enclosure | Die-cast aluminum alloy | Die-cast aluminum alloy | Die-cast aluminum alloy |
| Mounting | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel |
| Weight (Net) | 6.1 kg (13.45 lb) | 6.1 kg (13.45 lb) | 6.1 kg (13.45 lb) |
| Touchscreen | |||
| Touch type | 5-wire resistive | 5-wire resistive | 5-wire resistive |
