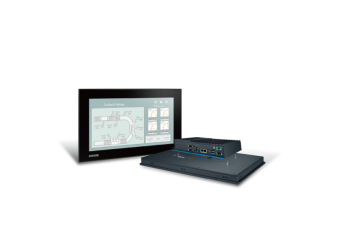

TPC-B520

Modular TPC - Computing Box Module with Intel Core processors (13th gen)

Manufacturer: Advantech
Manufacturer: Advantech
  • Modular Computing Box powered by Intel® Core™ processors (13th gen) i5-1335UE deca-core/ i7-1365URE deca-core processor
  • Single DDR5 Memory slot supports up to 32GB
  • Support expansion via three M.2 slots (NVMe, Wifi, 5G)
  • LAN, POE, isolated serial port and isolated digital I/O via iDoor technology
  • Support Type C connector with USB 3.2, DP 1.4a, 15W power delivery
  • Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
  • Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1", 15", 15.6", 21.5" with high brightness panel option)
Price from €1,274.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models

Description

Technical Specification

Processor 13th Gen. Intel Core i5-1335UE 1.3 GHz Deca-core/i7-1365URE 1.7 GHz Deca-core processor
RAM Up to 32 GB DDR5
VGA (DSub) -
HDMI -
Displayport 1
2,5" HDD/SSD 1x SATA for 2.5" SSD/HDD (Optional)
M.2 1x M.2 M key 2280 for NVMe (PCIE x4/SATA, RAID support)
1x M.2 B Key 3042, 3052, 3080 for iDoor (PCIe x2/USB2.0, RAID support w/ SSD)
1x M.2 E key 2230 for WIFI (PCIe/USB2.0)
1x M.2 B Key 3052 for 5G LTE (PCIe/USB3.2/USB2.0)
PCIe x16 -
PCIe x4 -
PCI -
LAN 2x 2.5 GbE
Slot mSATA -
Slot miniPCIe -
Audio 2x 4Ω Speaker for Audio out (Optional)
USB 3.2 2
USB 2.0 2
RS-232/422/485 2
TPM TPM 2.0 (built-in)
Operating temp. -20°C ~ +60°C
