TPC-B610

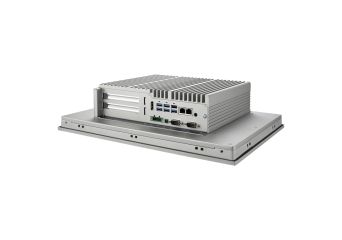

TPC-B610 is the highest performance Panel PC solution to date for your future-proof Industry 4.0 application.
Manufacturer: Advantech
Manufacturer: Advantech
- High Performance Computing Box powered by Intel® 10th Gen. Core™ i CPU Socket (LGA1200) with fanless design
- 6 x Panel Modules (IP66) ranging from 15" to 23.8" in selection
- Dual Channel Memory slots (DDR4) support up to 64GB in total
- Comprehensive I/Os, including 6 x USB, 2 x COM, 2 x RJ45...etc
- Supports Expansion via 1 x PCIe x16, 1 x mPCIe, 2 x M.2 (NVMe, SATA, 5G)
- Supports Storage via 2 x 2.5" HDD/SSD (RAID 0/1), 2 x M.2 (2242/2280)
- Supports Fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Supports Diverse system I/O, DIO, PoE...etc. via iDoor technology
- Supports TPM 2.0 hardware security
- No processor, power supply, RAM, disk and operating system
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTPC-B610H-A00AModular TPC Box, H420E, LGA1200P, PCIex16In stockWarranty: €853.00€1,049.19Login to check your price TPC-B610H-A00AModular TPC Box, H420E, LGA1200P, PCIex16Availability:In stockNet price:€853.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTPC-B610W-A00AModular TPC Box, W480E, LGA1200P, PCIex16/x4In stockWarranty: €942.00€1,158.66Login to check your price TPC-B610W-A00AModular TPC Box, W480E, LGA1200P, PCIex16/x4Availability:In stockNet price:€942.00
Description
Advantech's TPC-B610 is the highest performance Panel PC solution to date for your future-proof Industry 4.0 application. This Modular Computing Box, with its iconic fanlessdesign, is powered by 10th Gen. Intel Core i Socket (LGA1200), a total of 64GB DDR4, comprehensive I/Os including 6 x USBs, greatest expansion via PCIe x16 and bountiful Storagethrough M.2 SATA/NVME and 2 x 2.5" HDD/SSD slots, living up to your high-end processing and calculation demands. With an easy pairing with Panel Module, a premium PanelPC system with IP66-grade, ranging from 15" to 23.8" up to FHD resolution, is born to meet your corporate expectation.
Technical Specification
| TPC-B610H-A00A | TPC-B610W-A00A | |
| Processor | Intel® 10th Gen. Core™ i CPU Socket (LGA1200) | Intel® 10th Gen. Core™ i CPU Socket (LGA1200) |
| RAM | up to 64 GB DDR4 | up to 64 GB DDR4, ECC supported |
| VGA (DSub) | - | - |
| HDMI | - | - |
| Displayport | 1 | 1 |
| 2,5" HDD/SSD | 2 (max. 7mm) | 2 (max. 7mm) RAID(0/1) |
| M.2 | 1x M.2 2242 B key (SATA) 1x M.2 2280 (SATA) |
1x M.2 2242 B key (SATA) 1x M.2 M key 2280 (NVMe PCIe x4) |
| PCIe x16 | 1 | 1 |
| PCIe x4 | - | 1 |
| PCI | 1 | - |
| LAN | 2x 10/100/1000BASE-T | 2x 10/100/1000BASE-T |
| Slot mSATA | - | - |
| Slot miniPCIe | 1 full-size | 1 full-size |
| Audio | 1x line out/Mic in | 1x line out/Mic in |
| USB 3.2 | 5 | 5 |
| USB 2.0 | 1 | 1 |
| RS-232 | 1 | 1 |
| RS-232/422/485 | 1 | 1 |
| TPM | TPM 2.0 (built-in) | TPM 2.0 (built-in) |
| Operating temp. | -10°C ~ +50°C | -10°C ~ +50°C |
Download
