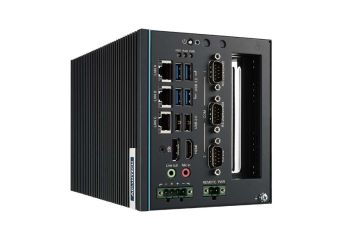

UNO-348
Compact Embedded Edge Controller with 10th Gen Intel® Processor, up to 3 x PCIe/PCI slots, 1 x M.2 B-Key, 1 x mPCIe, and 2 x 2.5" SSD
- 10th gen Intel® socket-type processor with DDR4 memory
- Scalable processor and RAM memory options
Compact, rugged, fanless design for harsh embedded environments - Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe,
and 2 x 2.5” SSD - Optional iDoor expansion
- Remote out-of-band (OOB) power management with Advantech’s iBMC
technology - Built-in TPM2.0 for hardware-based security
Price from €872.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUNO-348-ANN1AH420E, 3*COM, 6*USB, 3*LAN, 1*PCIex16Out of stock Warranty: €872.00€1,072.56Login to check your price UNO-348-ANN1AH420E, 3*COM, 6*USB, 3*LAN, 1*PCIex16Availability: Out of stockNet price:€872.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUNO-348-ANN3AH420E,3COM,6USB,3LAN,1PCIex16,2PCIOut of stock Warranty: €942.00€1,158.66Login to check your price UNO-348-ANN3AH420E,3COM,6USB,3LAN,1PCIex16,2PCIAvailability: Out of stockNet price:€942.00
Technical Specification
| UNO-348 | UNO-348-ANN1A | UNO-348-ANN3A |
| General | ||
| Weight (Net) | 3,5 kg | 3,5 kg |
| Case | Aluminum | Aluminum |
| Mounting | Wall mount/stand mount | Wall mount/stand mount |
| Dim | 200 x 140 x 120 mm | 200 x 140 x 160 mm |
| Hardware | ||
| Certification | CB, UL, CE, FCC, CCC, BSMI | CB, UL, CE, FCC, CCC, BSMI |
| Power Requirements | 10~36 V, DC | 10~36 V, DC |
| OS Support | Microsoft Windows 10 2019 LTSC, Linux | Microsoft Windows 10 2019 LTSC, Linux |
| Hardware Security | TPM 2.0 | TPM 2.0 |
| Chipset | Intel® H420E | Intel® H420E |
| CPU | Supports Intel® Core™ i9/i7/i5/i3/ Celeron®/Pentium® | Supports Intel® Core™ i9/i7/i5/i3/ Celeron®/Pentium® |
| Memory | Supports up to 64 GB | Supports up to 64 GB |
| Graphics Engine | Intel HD Graphics | Intel HD Graphics |
| Storage socket | 2 x 2.5" SSD/HDD bay | 2 x 2.5" SSD/HDD bay |
| I/O | ||
| Serial Ports | 2 x RS-232/422/485, 1 x RS-232 | 2 x RS-232/422/485, 1 x RS-232 |
| LAN Ports | 3 x 10/100/1000 Mbps | 3 x 10/100/1000 Mbps |
| USB Ports | 4 x USB 3.2 Gen 1, 2 x USB 2.0 (Type A) | 4 x USB 3.2 Gen 1, 2 x USB 2.0 (Type A) |
| Power Connector | 1 x 4-pin terminal block | 1 x 4-pin terminal block |
| Display Port | 1 x DP | 1 x DP |
| HDMI | 1 x HDMI | 1 x HDMI |
| Expansion | 1 x M.2 B key for 2242/2280 SATA SSD or 3042/3052 LTE/5G module expansion, 1 x Full-size mPCIe, 1 x PCIex16 | 1 x M.2 B key for 2242/2280 SATA SSD or 3042/3052 LTE/5G module expansion, 1 x Full-size mPCIe, 1 x PCIex16, 2x PCI |
| Environmental | ||
| Operating Temperature | -20~50 °C (-4~122 °F) | -20~50 °C (-4~122 °F) |
| Relative Humidity | 10~95% RH (no condensation) | 10~95% RH (no condensation) |
| Storage Temperature | -40~85 °C (-40~185 °F) | -40~85 °C (-40~185 °F) |
| Ingress Protection | IP20 | IP20 |
| Shock Protection | 50 G | 50 G |
| Vibration Protection | 4 Grms | 4 Grms |
| I/O | ||
| GPIO | 1 x GPIO (8 bit) internal pin header | 1 x GPIO (8 bit) internal pin header |
Download
